1.623.3800.70
1.623.3800.70
Hummel

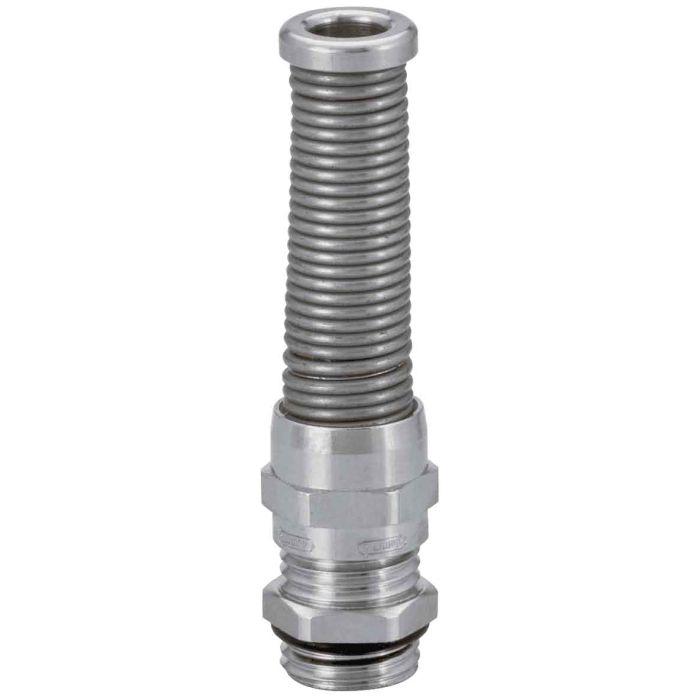

Cable gland made of brass with bend protection
Cable gland made of brass with bend protection Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - NBR
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1623380070 |
| Weight (kg) | 0.04812 |
| Further information | Other sealing material e.g. Silicone upon request |
| Customs tariff number | 74199990 |
| EAN code | 4033878433294 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 66 |
| Certificates | CSA, UR, DNV-GL, Bahnzulassung, cUR, CE |
| Version | short |
| External thread (AG) | NPT 3/8" |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 4 – 8 |
| Wrench size SW1 / SW2 (mm) | 17/19 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 15 |
| Variant | NPT |
| Tightening torque [Nm] | 6 |
| Wrench size 1 (SW1) [mm] | 17 |
| Wrench size (SW) [mm] | 19 |
| d (mm) | 8.2 |
| Clamping insert | Polyamide V0 according to UL 94 |
| Steel spring | INOX 1.4310 |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Temperature Range | -40°C to +100°C |
