1.628.1200.70
1.628.1200.70
Hummel

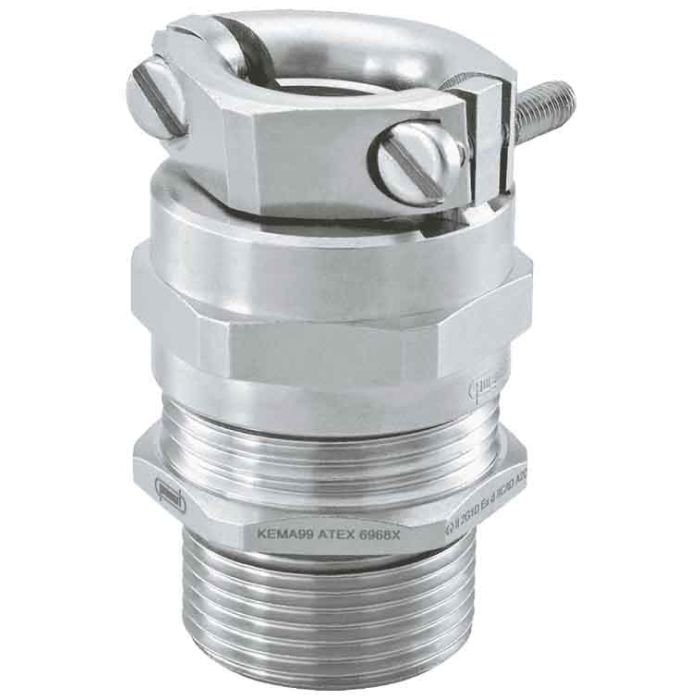

Cable gland made of brass with strain relief for hazardous locations "d"
Cable gland made of brass with strain relief for hazardous locations "d" Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - FKM
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1628120070 |
| Weight (kg) | 0.03725 |
| Customs tariff number | 74199990 |
| EAN code | 4033878433799 |
| ETIM 7 | EC000441 |
| Packaging Unit | 25 |
| Height (mm) | 33.6 |
| Certificates | CE, DNV-GL, ATEX, EAC, INMETRO, IECEx |
| Version | short |
| External thread (AG) | NPT 1/2" |
| Cable diameter (mm) | 10 – 14 |
| Wrench size SW1 / SW2 (mm) | 24/24 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Seal | FKM |
| Thread length (mm) | 20.0000 |
| Variant | NPT |
| Tightening torque [Nm] | 10.0000 |
| Wrench size 1 (SW1) [mm] | 24.0000 |
| Wrench size (SW) [mm] | 24.0000 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex db IIC Gb |
| Clamping insert | Polyamide V0 according to UL 94 |
| Norms | RoHS |
| Temperature Range | -60°C to +105°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
