1.631.2100.01
1.631.2100.01
Hummel

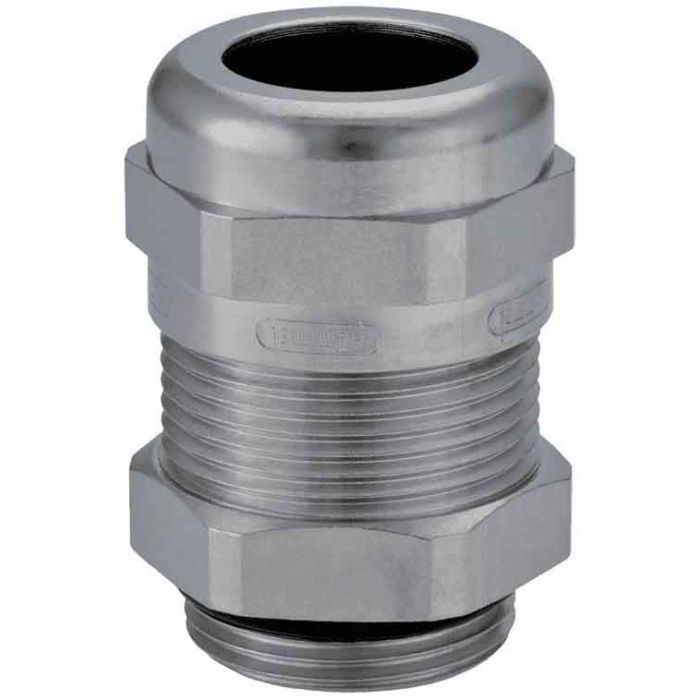

Cable gland made of brass with EMC protection for carrying through the braided shield
Cable gland made of brass with EMC protection for carrying through the braided shield Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - NBR
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1631210001 |
| Video URL | https://youtu.be/9kLmHqsxKFo |
| Weight (kg) | 0.07216 |
| Further information | Other sealing material e.g. Silicone upon request |
| Customs tariff number | 85369010 |
| EAN code | 4033878434055 |
| ETIM 7 | EC000441 |
| Packaging Unit | 25 |
| Height (mm) | 38.0000 |
| Certificates | UL, CSA, DNV-GL, cUL |
| Version | short |
| External thread (AG) | PG 21 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 13 – 18 |
| Wrench size SW1 / SW2 (mm) | 30/30 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 7.0000 |
| Variant | PG |
| Tightening torque [Nm] | 13.0000 |
| Wrench size 1 (SW1) [mm] | 30.0000 |
| Wrench size (SW) [mm] | 30.0000 |
| Clamping insert | Metallized polyamide |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS, EMV |
| Temperature Range | -40°C to +100°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
