Hummel

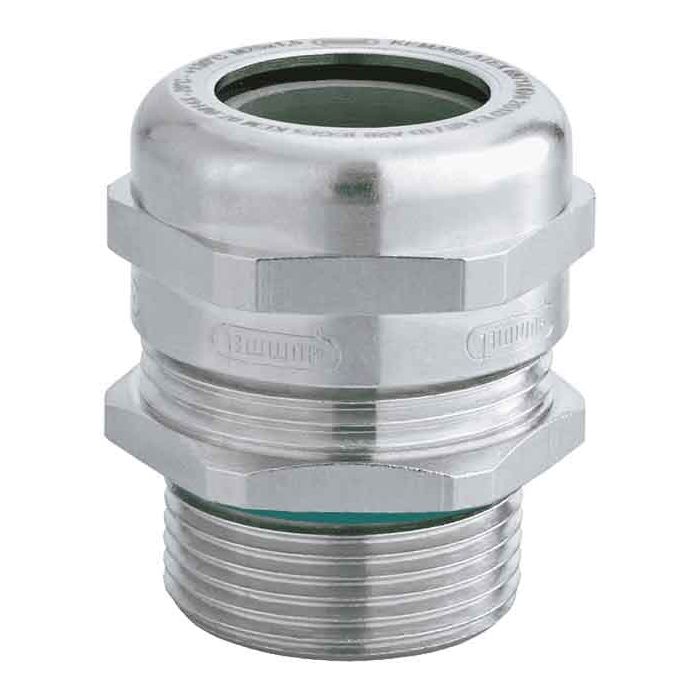

Cable gland made of brass for hazardous areas
Cable gland made of brass for hazardous areas Protection class - IP 68 – 10 bar, IP 69 K. Version - long. Seal - FKM
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1660070060 |
| Weight (kg) | 0.01151 |
| Customs tariff number | 74199990 |
| EAN code | 4033878437179 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 19 |
| Certificates | ATEX, EAC, UR, INMETRO, IECEx, DNV-GL, CE, cUR |
| Version | long |
| External thread (AG) | PG 7 |
| Material seals / O-rings | FKM |
| Cable diameter (mm) | 3 – 6.5 |
| Wrench size SW1 / SW2 (mm) | 14/14 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Seal | FKM |
| Thread length (mm) | 10 |
| Variant | PG.-long |
| Tightening torque [Nm] | 4 |
| Wrench size 1 (SW1) [mm] | 14 |
| Wrench size (SW) [mm] | 14 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| Clamping insert | PVDF |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Temperature Range | -20°C to +130°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
