Hummel

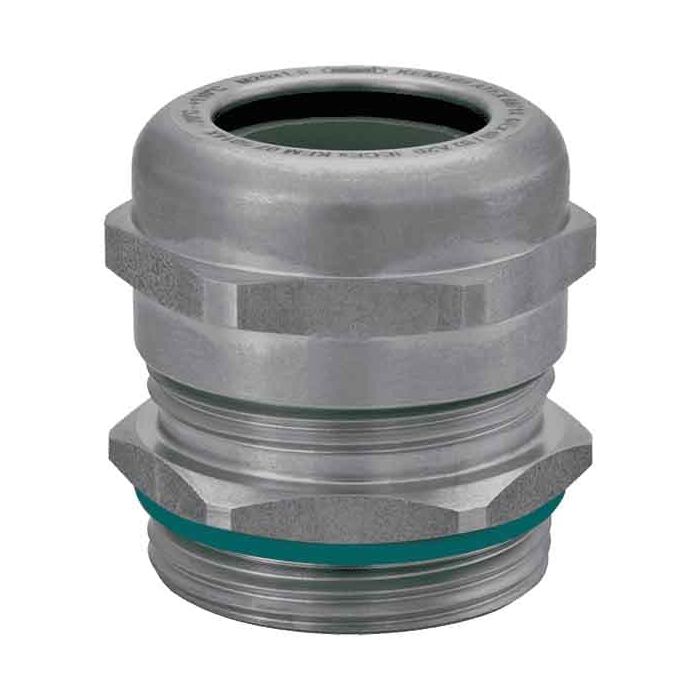

Cable gland made of stainless steel for hazardous areas
Cable gland made of stainless steel for hazardous areas Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - FKM
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1662400050 |
| Weight (kg) | 0.19666 |
| Customs tariff number | 73269098 |
| EAN code | 4033878438404 |
| ETIM 7 | EC000441 |
| Packaging Unit | 5 |
| Height (mm) | 35.0000 |
| Certificates | CE, IECEx, EAC, ATEX, DNV-GL, INMETRO, UL, cUL |
| Version | short |
| External thread (AG) | M40 x 1,5 |
| Material seals / O-rings | FKM |
| Cable diameter (mm) | 22 – 32 |
| Wrench size SW1 / SW2 (mm) | 50/50 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | INOX 1.4305 |
| Seal | FKM |
| Thread length (mm) | 8.0000 |
| Variant | Metric |
| Tightening torque [Nm] | 15.0000 |
| Wrench size 1 (SW1) [mm] | 50.0000 |
| Wrench size (SW) [mm] | 50.0000 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| Clamping insert | PVDF |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Temperature Range | -20°C to +130°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
