1.666.0700.01
1.666.0700.01
Hummel

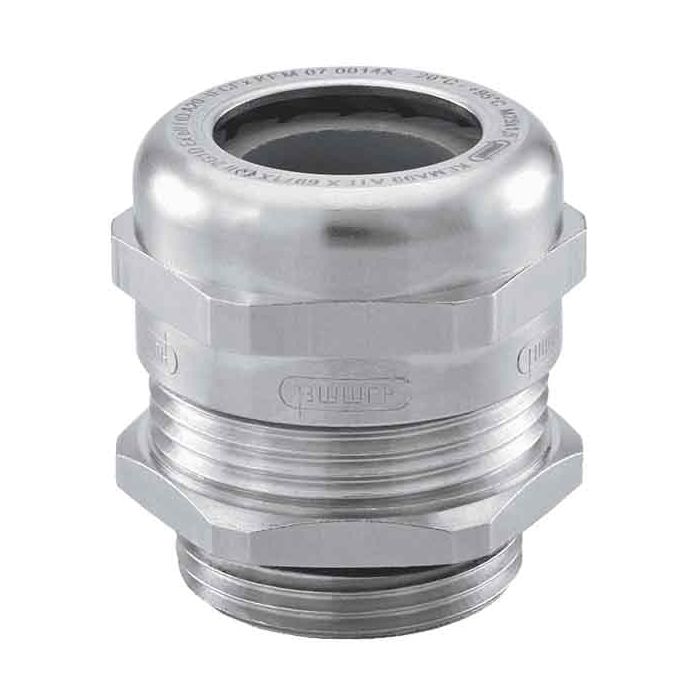

Cable gland made of brass with EMC protection for hazardous areas
Cable gland made of brass with EMC protection for hazardous areas Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - FKM
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1666070001 |
| Weight (kg) | 0.00944 |
| Further information | Elongated threads on request |
| Customs tariff number | 85369010 |
| EAN code | 4033878438428 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 19.0000 |
| Certificates | CE, IECEx, EAC, ATEX, DNV-GL, UR, cUR, INMETRO |
| Version | short |
| External thread (AG) | PG 7 |
| Material seals / O-rings | FKM |
| Cable diameter (mm) | 3 – 6.5 |
| Wrench size SW1 / SW2 (mm) | 14/14 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Seal | FKM |
| Thread length (mm) | 5.0000 |
| Variant | PG |
| Tightening torque [Nm] | 4.0000 |
| Wrench size 1 (SW1) [mm] | 14.0000 |
| Wrench size (SW) [mm] | 14.0000 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| Clamping insert | PVDF |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS, EMV |
| Temperature Range | -20°C to +130°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
