1.666.3400.70
1.666.3400.70
Hummel

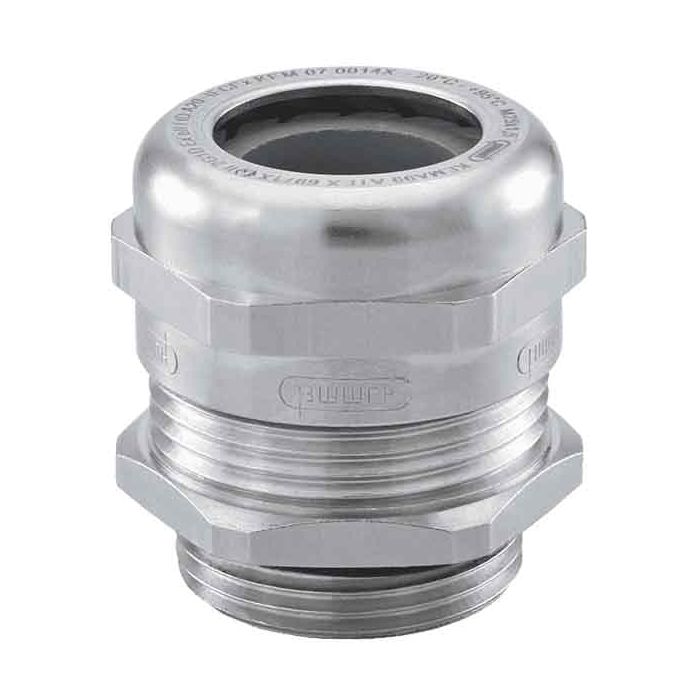

Cable gland made of brass with EMC protection for hazardous areas
Cable gland made of brass with EMC protection for hazardous areas Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - FKM
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1666340070 |
| Weight (kg) | 0.04696 |
| Further information | Elongated threads on request |
| Customs tariff number | 85369010 |
| EAN code | 4033878438589 |
| ETIM 7 | EC000441 |
| Packaging Unit | 25 |
| Height (mm) | 25 |
| Certificates | CE, IECEx, EAC, ATEX, DNV-GL, UL, cUL, INMETRO |
| Version | short |
| External thread (AG) | NPT 3/4" |
| Material seals / O-rings | FKM |
| Cable diameter (mm) | 14 – 18 |
| Wrench size SW1 / SW2 (mm) | 30/30 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Seal | FKM |
| Thread length (mm) | 13 |
| Variant | NPT |
| Tightening torque [Nm] | 12 |
| Wrench size 1 (SW1) [mm] | 30 |
| Wrench size (SW) [mm] | 30 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| Clamping insert | PVDF |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS, EMV |
| Temperature Range | -20°C to +130°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
