1.669.4200.15
1.669.4200.15
Hummel

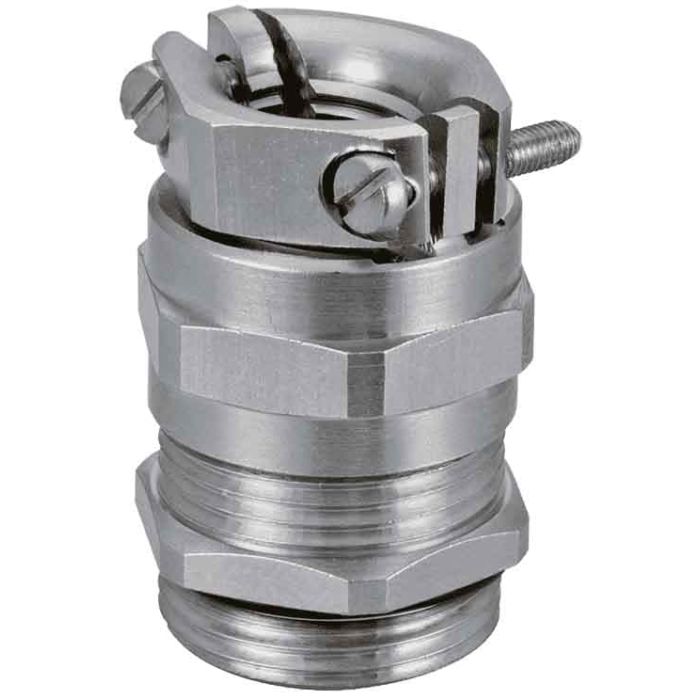

Cable gland made of brass with strain relief
Cable gland made of brass with strain relief Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - FKM
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1669420015 |
| Weight (kg) | 0.37238 |
| Further information | Other sealing material e.g. Silicone upon request |
| Customs tariff number | 74199990 |
| EAN code | 4033878439036 |
| ETIM 7 | EC000441 |
| Packaging Unit | 5 |
| Height (mm) | 51.0000 |
| Certificates | DNV-GL, CE |
| Version | short |
| External thread (AG) | PG 42 |
| Material seals / O-rings | FKM |
| Cable diameter (mm) | 25 – 31 |
| Wrench size SW1 / SW2 (mm) | 57/57 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Seal | FKM |
| Thread length (mm) | 9.0000 |
| Variant | PG |
| Tightening torque [Nm] | 24.0000 |
| Wrench size 1 (SW1) [mm] | 57.0000 |
| Wrench size (SW) [mm] | 57.0000 |
| Clamping insert | PVDF |
| Norms | RoHS |
| Temperature Range | -35°C to +150°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
