Hummel

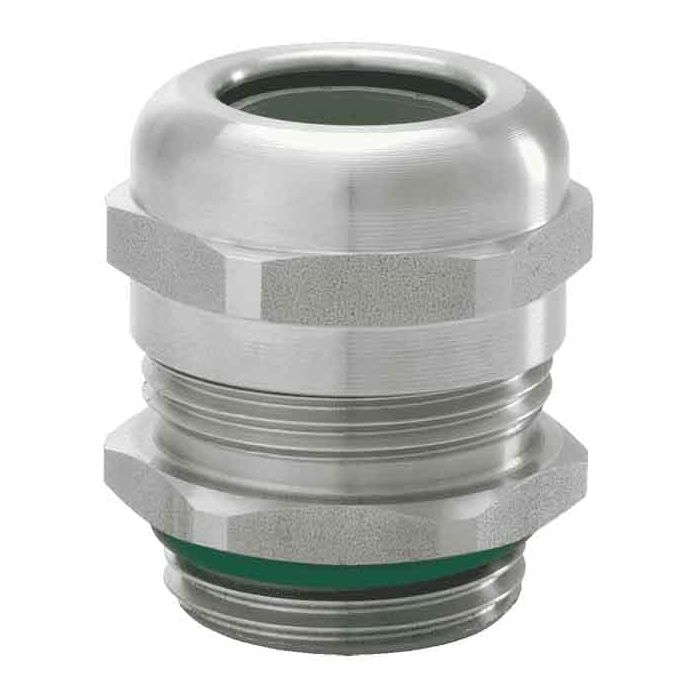

Cable gland made of stainless steel
Cable gland made of stainless steel Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - FKM
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1676070001 |
| Weight (kg) | 0.00841 |
| Customs tariff number | 73269098 |
| EAN code | 4033878439760 |
| ETIM 7 | EC000441 |
| Packaging Unit | 10 |
| Height (mm) | 19 |
| Certificates | UR, cUR, DNV-GL, CE |
| Version | short |
| External thread (AG) | PG 7 |
| Material seals / O-rings | FKM |
| Cable diameter (mm) | 3 – 6.5 |
| Wrench size SW1 / SW2 (mm) | 14/14 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | INOX 1.4404 |
| Seal | FKM |
| Thread length (mm) | 5 |
| Variant | PG |
| Tightening torque [Nm] | 4 |
| Wrench size 1 (SW1) [mm] | 14 |
| Wrench size (SW) [mm] | 14 |
| Clamping insert | PVDF |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Temperature Range | -35°C to +150°C |
| Attribute | Value |
|---|---|
