1.680.2920.01
1.680.2920.01
Hummel

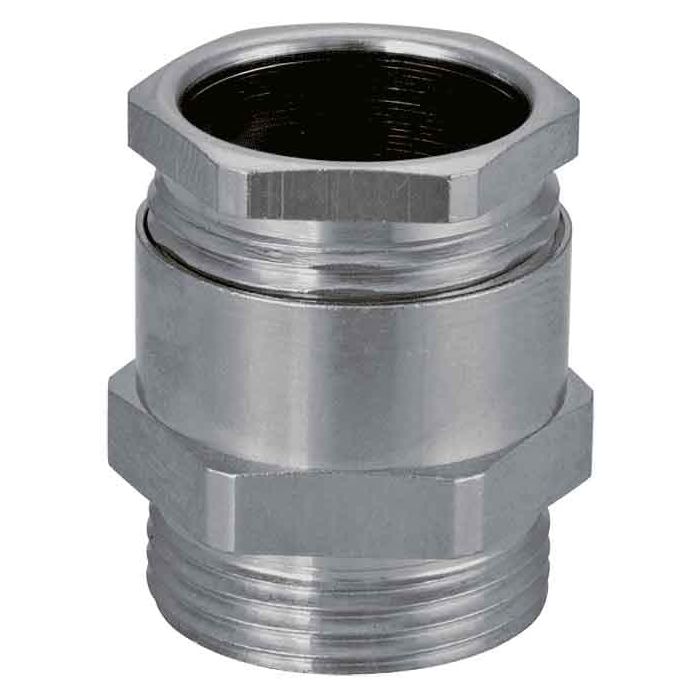

Cable gland made of brass to DIN 46320 with EMC protection
Cable gland made of brass to DIN 46320 with EMC protection Protection class - IP 54, IP 65 in case of additional flat seal at connection thread. Version - short. Seal - NBR
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1680292001 |
| Weight (kg) | 0.10412 |
| Customs tariff number | 85369010 |
| EAN code | 4033878440148 |
| ETIM 7 | EC000441 |
| Packaging Unit | 25 |
| Height (mm) | 30.0000 |
| Certificates | CE |
| Version | short |
| External thread (AG) | PG 29 |
| Cable diameter (mm) | 17 – 28 |
| Wrench size SW1 / SW2 (mm) | 37/40 |
| Protection class | IP 54, IP 65 in case of additional flat seal at connection thread |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 10.0000 |
| Variant | PG |
| Wrench size 1 (SW1) [mm] | 37.0000 |
| Wrench size (SW) [mm] | 40.0000 |
| E (mm) | 20.0000 |
| Norms | RoHS, EMV |
| Type | SE |
| Temperature Range | -20°C to +80°C |
