1.681.1107.01
1.681.1107.01
Hummel

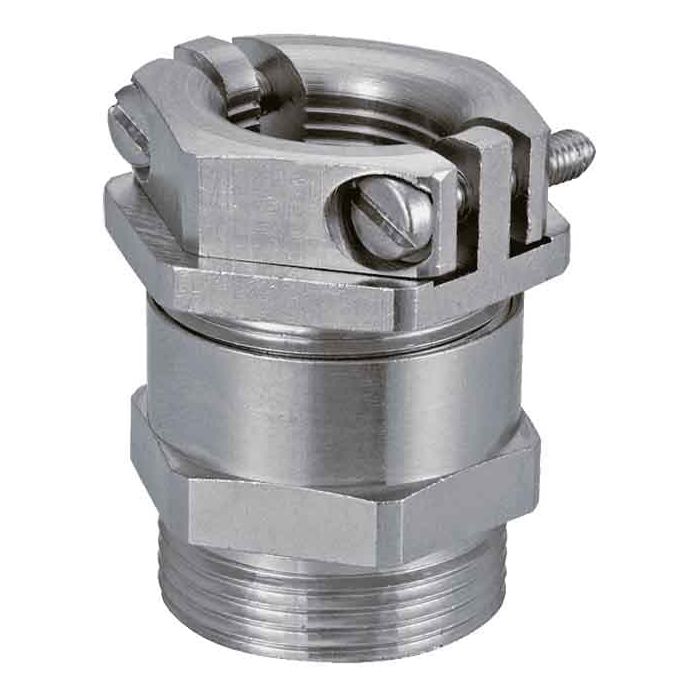

Cable gland made of brass to DIN 46320 with EMC protection and strain relief
Cable gland made of brass to DIN 46320 with EMC protection and strain relief Protection class - IP 54, IP 65 in case of additional flat seal at connection thread. Version - short. Seal - NBR
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1681110701 |
| Weight (kg) | 0.04395 |
| Customs tariff number | 85369010 |
| EAN code | 4033878440179 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 29.0000 |
| Certificates | CE |
| Version | short |
| External thread (AG) | PG 11 |
| Cable diameter (mm) | 7.5 – 12 |
| Wrench size SW1 / SW2 (mm) | 22/20 |
| Protection class | IP 54, IP 65 in case of additional flat seal at connection thread |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 7.0000 |
| Variant | PG |
| Wrench size 1 (SW1) [mm] | 22.0000 |
| Wrench size (SW) [mm] | 20.0000 |
| E (mm) | 7.0000 |
| Norms | RoHS, EMV |
| Type | ZSE |
| Temperature Range | -20°C to +80°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
