1.687.2003.50
1.687.2003.50
Hummel

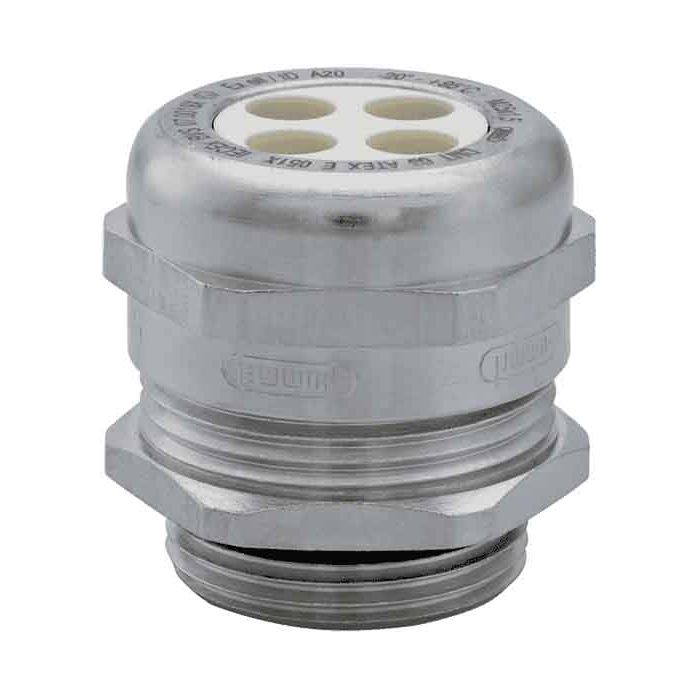

Cable gland made of brass with multi cable sealing insert for hazardous areas
Cable gland made of brass with multi cable sealing insert for hazardous areas Protection class - IP 68. Version - short. Seal - Elastomer
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1687200350 |
| Weight (kg) | 0.0295 |
| Further information | Further seal inserts on request |
| Customs tariff number | 74199990 |
| EAN code | 4033878006153 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 23 |
| Certificates | ATEX, EAC, INMETRO, CE, DNV-GL, UR, cUR, cCSAus |
| Version | short |
| External thread (AG) | M20 x 1,5 |
| Material seals / O-rings | NBR |
| Wrench size SW1 / SW2 (mm) | 22/22 |
| Protection class | IP 68 |
| Material | Nickel-plated brass |
| Seal | Elastomer |
| Thread length (mm) | 6 |
| Variant | Metric |
| Number of holes x d | 2 x 5 |
| Tightening torque [Nm] | 8 |
| Wrench size 1 (SW1) [mm] | 22 |
| Wrench size (SW) [mm] | 22 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| Clamping insert | Polyamide V0 according to UL 94 |
| Norms | RoHS |
| Temperature Range | -20°C to +95°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
