1.688.2100.01
1.688.2100.01
Hummel

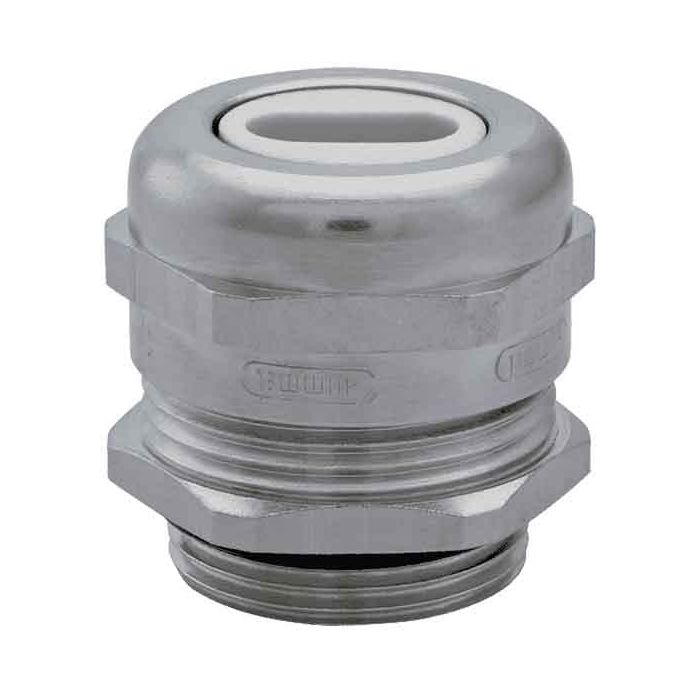

Cable gland made of brass with flat cable sealing insert
Cable gland made of brass with flat cable sealing insert Protection class - IP 65, IP 68 at 10 bar and optimum assignment of all bores. Version - short. Seal - Elastomer
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Product Brand Name | 1688210001 |
Weight (kg) | 0.05333 |
Further information | AISI upon request, Further seal inserts on request, Elongated threads on request |
Customs tariff number | 74199990 |
EAN code | 4033878007129 |
ETIM 7 | EC000441 |
Packaging Unit | 25 |
Height (mm) | 24.0000 |
Certificates | DNV-GL, CE |
Version | short |
External thread (AG) | PG 21 |
Material seals / O-rings | NBR |
Wrench size SW1 / SW2 (mm) | 30/30 |
Protection class | IP 65, IP 68 at 10 bar and optimum assignment of all bores |
Material | Nickel-plated brass |
Seal | Elastomer |
Thread length (mm) | 7.0000 |
Variant | PG |
Tightening torque [Nm] | 12.0000 |
Wrench size 1 (SW1) [mm] | 30.0000 |
Wrench size (SW) [mm] | 30.0000 |
Clamping insert | Polyamide V0 according to UL 94 |
B x H (mm) | 14 x 6 |
Norms | RoHS |
Temperature Range | -40°C to +100°C |
Attribute | Value |
---|---|
