Hummel

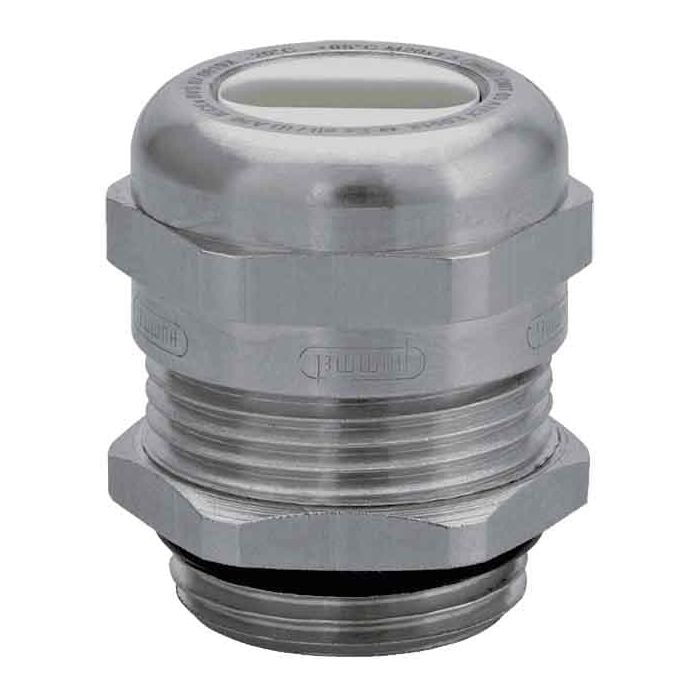

Cable gland made of brass with flat cable sealing insert for hazardous areas
Cable gland made of brass with flat cable sealing insert for hazardous areas Protection class - IP 65, IP 68 at 10 bar and optimum assignment of all bores. Version - short. Seal - Elastomer
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1689100070 |
| Weight (kg) | 0.12332 |
| Further information | Further seal inserts on request |
| Customs tariff number | 74199990 |
| EAN code | 4033878006320 |
| ETIM 7 | EC000441 |
| Packaging Unit | 25 |
| Height (mm) | 29.0000 |
| Certificates | ATEX, EAC, INMETRO, CE, DNV-GL, cCSAus |
| Version | short |
| External thread (AG) | NPT 1" |
| Material seals / O-rings | NBR |
| Wrench size SW1 / SW2 (mm) | 40/40 |
| Protection class | IP 65, IP 68 at 10 bar and optimum assignment of all bores |
| Material | Nickel-plated brass |
| Seal | Elastomer |
| Thread length (mm) | 19.0000 |
| Variant | NPT |
| Tightening torque [Nm] | 15.0000 |
| Wrench size 1 (SW1) [mm] | 40.0000 |
| Wrench size (SW) [mm] | 40.0000 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| Clamping insert | Polyamide V0 according to UL 94 |
| B x H (mm) | 22 x 8 |
| Norms | RoHS |
| Temperature Range | -20°C to +95°C |
