Hummel

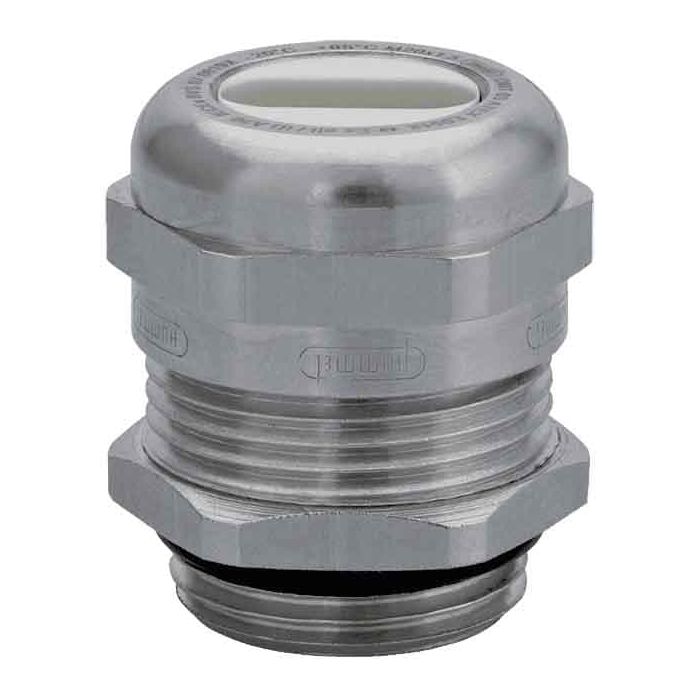

Cable gland made of brass with flat cable sealing insert for hazardous areas
Cable gland made of brass with flat cable sealing insert for hazardous areas Protection class - IP 65, IP 68 at 10 bar and optimum assignment of all bores. Version - short. Seal - Elastomer
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Product Brand Name | 1689290001 |
Weight (kg) | 0.10216 |
Further information | Further seal inserts on request |
Customs tariff number | 74199990 |
EAN code | 4033878006092 |
ETIM 7 | EC000441 |
Packaging Unit | 25 |
Height (mm) | 29.0000 |
Certificates | ATEX, EAC, INMETRO, CE, DNV-GL, cCSAus |
Version | short |
External thread (AG) | PG 29 |
Material seals / O-rings | NBR |
Wrench size SW1 / SW2 (mm) | 40/40 |
Protection class | IP 65, IP 68 at 10 bar and optimum assignment of all bores |
Material | Nickel-plated brass |
Seal | Elastomer |
Thread length (mm) | 8.0000 |
Variant | PG |
Tightening torque [Nm] | 15.0000 |
Wrench size 1 (SW1) [mm] | 40.0000 |
Wrench size (SW) [mm] | 40.0000 |
Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
Clamping insert | Polyamide V0 according to UL 94 |
B x H (mm) | 22 x 8 |
Norms | RoHS |
Temperature Range | -20°C to +95°C |
Attribute | Value |
---|---|
