1.690.1300.60
1.690.1300.60
Hummel

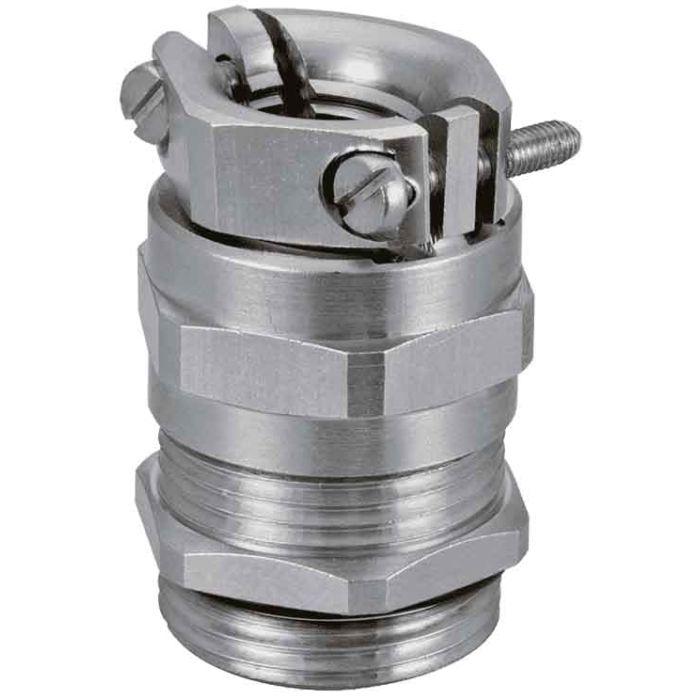

Cable gland made of brass with strain relief
Cable gland made of brass with strain relief Protection class - IP 68 – 10 bar, IP 69 K. Version - long. Seal - NBR
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1690130060 |
| Weight (kg) | 0.04669 |
| Further information | Other sealing material e.g. Silicone upon request |
| Customs tariff number | 74199990 |
| EAN code | 4033878440704 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 33.0000 |
| Certificates | CSA, DNV-GL, Bahnzulassung, UL, cUL, CE |
| Version | long |
| External thread (AG) | PG 13,5 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 6 – 12 |
| Wrench size SW1 / SW2 (mm) | 22/22 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 10.0000 |
| Variant | PG.-long |
| Tightening torque [Nm] | 8.0000 |
| Wrench size 1 (SW1) [mm] | 22.0000 |
| Wrench size (SW) [mm] | 22.0000 |
| Clamping insert | Polyamide V0 according to UL 94 |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Temperature Range | -40°C to +100°C |
| Attribute | Value |
|---|---|
