Hummel

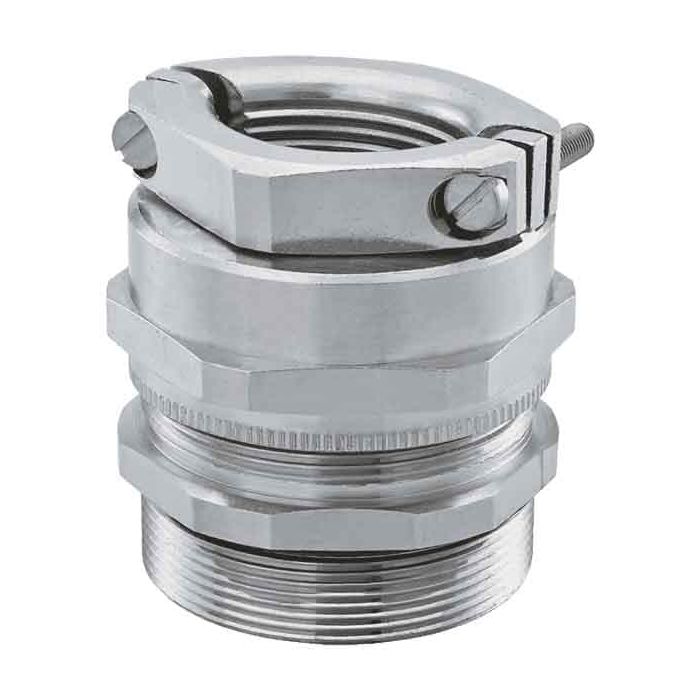

Cable gland made of brass with strain relief
Cable gland made of brass with strain relief Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - NBR
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1690480001 |
| Weight (kg) | 0.40546 |
| Further information | Other sealing material e.g. Silicone upon request |
| Customs tariff number | 74199990 |
| EAN code | 4033878440995 |
| ETIM 7 | EC000441 |
| Packaging Unit | 5 |
| Height (mm) | 52.0000 |
| Certificates | CSA, DNV-GL, Bahnzulassung, UL, cUL, CE |
| Version | short |
| External thread (AG) | PG 48 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 37 – 44 |
| Wrench size SW1 / SW2 (mm) | 64/64 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 15.0000 |
| Variant | PG |
| Tightening torque [Nm] | 30.0000 |
| Wrench size 1 (SW1) [mm] | 64.0000 |
| Wrench size (SW) [mm] | 64.0000 |
| Clamping insert | Polyamide V0 according to UL 94 |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Temperature Range | -40°C to +100°C |
