1.695.1200.50
1.695.1200.50
Hummel

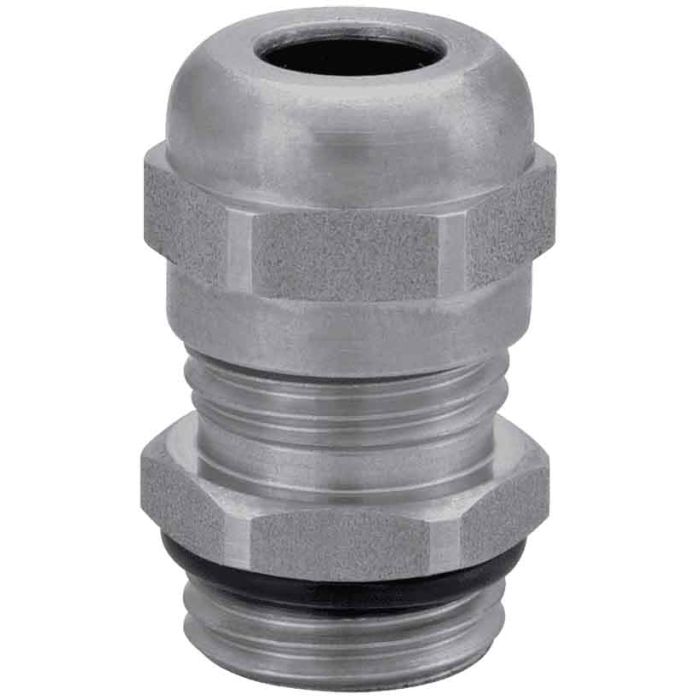

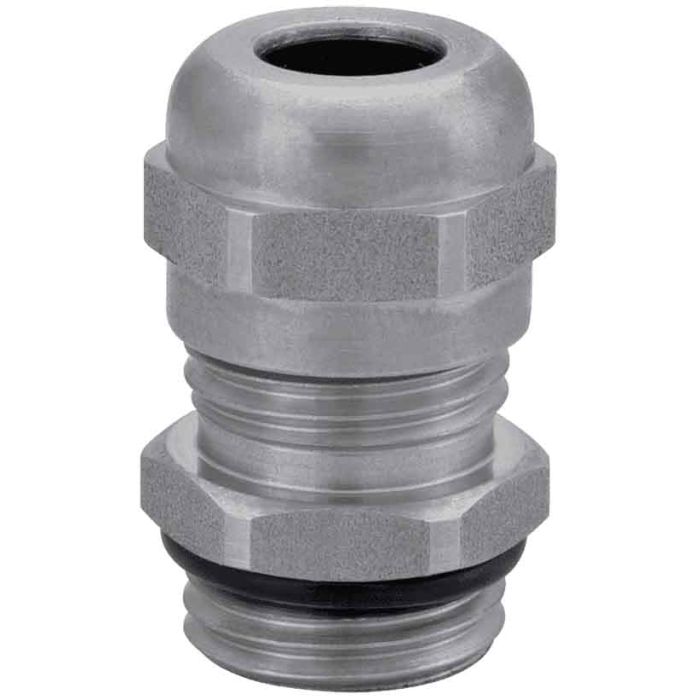

Cable gland made of stainless steel
Cable gland made of stainless steel Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - NBR
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1695120050 |
| Weight (kg) | 0.0093 |
| Customs tariff number | 73269098 |
| EAN code | 4033878442760 |
| ETIM 7 | EC000441 |
| Packaging Unit | 10 |
| Height (mm) | 19 |
| Certificates | CE, VDE, UR, CSA, DNV-GL, cUR, Bahnzulassung |
| Version | short |
| External thread (AG) | M12 x 1,5 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 3 – 6.5 |
| Wrench size SW1 / SW2 (mm) | 14/14 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | INOX 1.4305 |
| Seal | NBR |
| Thread length (mm) | 6.5 |
| Variant | Metric |
| Tightening torque [Nm] | 4 |
| Wrench size 1 (SW1) [mm] | 14 |
| Wrench size (SW) [mm] | 14 |
| Clamping insert | Polyamide V0 according to UL 94 |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Temperature Range | -40°C to +100°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
