Hummel

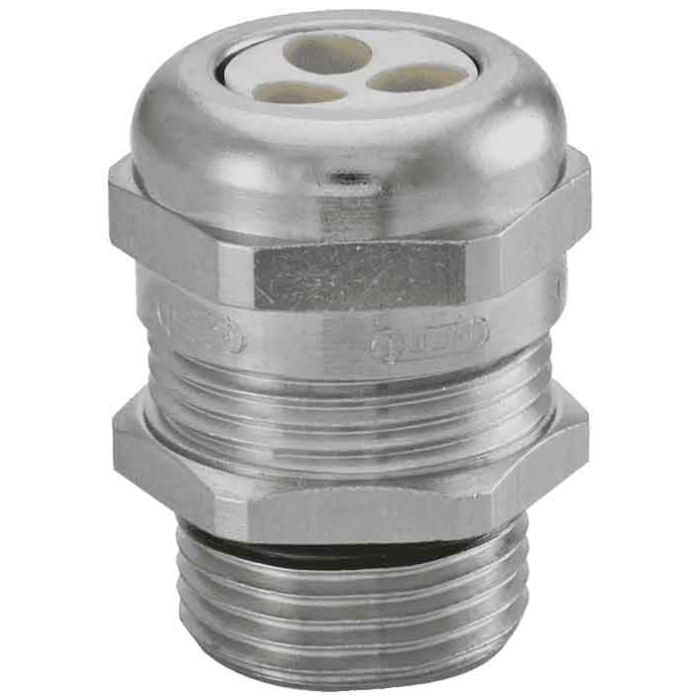

Cable gland made of brass with multi cable sealing insert
Cable gland made of brass with multi cable sealing insert Protection class - IP 65, IP 68 at 10 bar and optimum assignment of all bores. Version - short. Seal - Elastomer
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1697480201 |
| Weight (kg) | 0.32099 |
| Further information | AISI upon request, Further seal inserts on request, Elongated threads on request |
| Customs tariff number | 74199990 |
| EAN code | 4033878006702 |
| ETIM 7 | EC000441 |
| Packaging Unit | 5 |
| Height (mm) | 38 |
| Certificates | DNV-GL, UR, CSA, cUR, CE |
| Version | short |
| External thread (AG) | PG 48 |
| Material seals / O-rings | NBR |
| Wrench size SW1 / SW2 (mm) | 64/64 |
| Protection class | IP 65, IP 68 at 10 bar and optimum assignment of all bores |
| Material | Nickel-plated brass |
| Seal | Elastomer |
| Thread length (mm) | 10 |
| Variant | PG |
| Number of holes x d | 3 x 18 |
| Tightening torque [Nm] | 30 |
| Wrench size 1 (SW1) [mm] | 64 |
| Wrench size (SW) [mm] | 64 |
| Clamping insert | Polyamide V0 according to UL 94 |
| Norms | RoHS |
| Temperature Range | -40°C to +100°C |
