1.740.1203.50
1.740.1203.50
Hummel

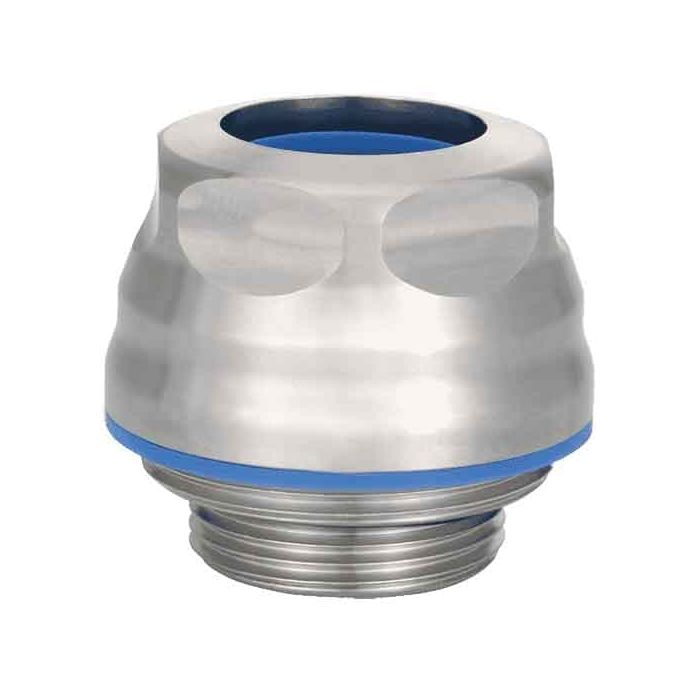

Cable gland made of stainless steel for hygienic requirements
Cable gland made of stainless steel for hygienic requirements Protection class - IP 69 K, IP 68 – 10 bar, IP 66. Version - short. Seal - HD-enclosure: VMQ (silicone), blue (similar RAL 5017)
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1740120350 |
| Video URL | https://youtu.be/TL8yBdE8RXU |
| Weight (kg) | 0.025 |
| Further information | EMC connection integrated, VDMA Riboflavin cleaning test passed, EHEDG 01 cleaning test passed, EHEDG certificate EL class I AUX approved |
| Customs tariff number | 73269098 |
| EAN code | 4033878444641 |
| ETIM 7 | EC000441 |
| Packaging Unit | 10 |
| Height (mm) | 19 |
| Certificates | EHEDG, UR, cUR, ECOLAB, CE |
| Version | short |
| External thread (AG) | M12 x 1,5 |
| Cable diameter (mm) | 5 – 6.5 |
| Wrench size SW1 / SW2 (mm) | 14/14 |
| Protection class | IP 69 K, IP 68 – 10 bar, IP 66 |
| Material | INOX 1.4404 |
| Seal | HD-enclosure: VMQ (silicone), blue (similar RAL 5017) |
| Thread length (mm) | 6 |
| Variant | Metric |
| Tightening torque [Nm] | 8 |
| Wrench size 1 (SW1) [mm] | 14 |
| Wrench size (SW) [mm] | 14 |
| Norms | EMV |
| Temperature Range | -40°C to +120°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
