1.740.2002.50
1.740.2002.50
Hummel

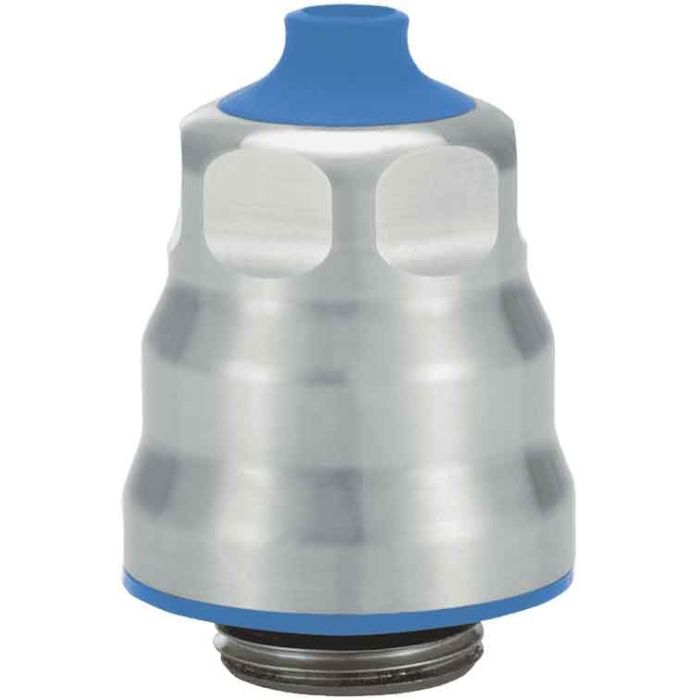

Cable gland made of stainless steel for hygienic requirements
Cable gland made of stainless steel for hygienic requirements Protection class - IP 68. Version - short. Seal - HD-enclosure: VMQ (silicone), blue (similar RAL 5017)
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1740200250 |
| Video URL | https://youtu.be/JnXeyhWXdCo |
| Weight (kg) | 0.0805 |
| Further information | EMC integrated, VDMA Riboflavin cleaning test fulfilled and passed, Durability and cleanability tested and passed with compounds from ECOLAB |
| Customs tariff number | 73269098 |
| EAN code | 4033878444689 |
| ETIM 7 | EC000441 |
| Packaging Unit | 5 |
| Height (mm) | 34.5 |
| Certificates | ECOLAB, CE |
| Version | short |
| External thread (AG) | M20 x 1,5 |
| Cable diameter (mm) | 10 – 14 |
| Wrench size SW1 / SW2 (mm) | 24/24 |
| Protection class | IP 68 |
| Material | INOX 1.4404 |
| Seal | HD-enclosure: VMQ (silicone), blue (similar RAL 5017) |
| Thread length (mm) | 6.0000 |
| Variant | Metric |
| Tightening torque [Nm] | 10.0000 |
| Wrench size 1 (SW1) [mm] | 24.0000 |
| Wrench size (SW) [mm] | 24.0000 |
| d (mm) | 13.2 |
| Norms | EMV |
| Temperature Range | -40°C to +120°C |
