1.750.2500.51
1.750.2500.51
Hummel

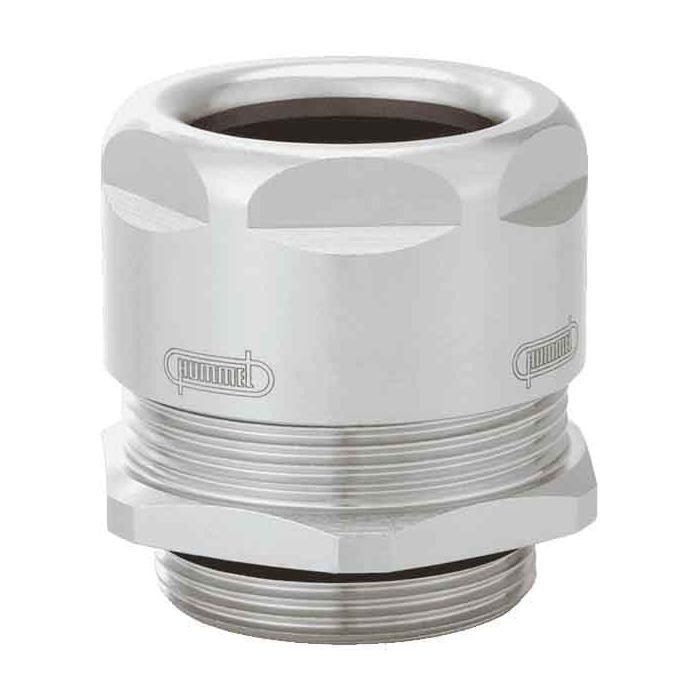

Cable gland made of brass for the railway sector
Cable gland made of brass for the railway sector Protection class - IP 68 – 10 bar. Version - short. Seal - EPDM
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1750250051 |
| Video URL | https://youtu.be/Bf84K6zBTpE |
| Weight (kg) | 0.06281 |
| Further information | DIN EN 45545-2 and DIN EN 45545-3, large clamping range through reduction insert, integrated anti-twist protection during cable installation, UL certification in preparation |
| Customs tariff number | 85369010 |
| EAN code | 4033878004418 |
| ETIM 7 | EC000441 |
| Packaging Unit | 25 |
| Height (mm) | 29.0000 |
| Certificates | Bahnzulassung, UL, CE |
| Version | short |
| External thread (AG) | M25 x 1,5 |
| Material seals / O-rings | EPDM |
| Cable diameter (mm) | 14.5 – 18 |
| Wrench size SW1 / SW2 (mm) | 27/30 |
| Protection class | IP 68 – 10 bar |
| Material | Nickel-plated brass |
| Seal | EPDM |
| Thread length (mm) | 7.0000 |
| Variant | Metric |
| Tightening torque [Nm] | 10.0000 |
| Wrench size 1 (SW1) [mm] | 27.0000 |
| Wrench size (SW) [mm] | 30.0000 |
| Fire resistance class | E30 |
| Norms | RoHS, EMV |
| Temperature Range | -40°C to +100°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
