1.751.2500.51
1.751.2500.51
Hummel

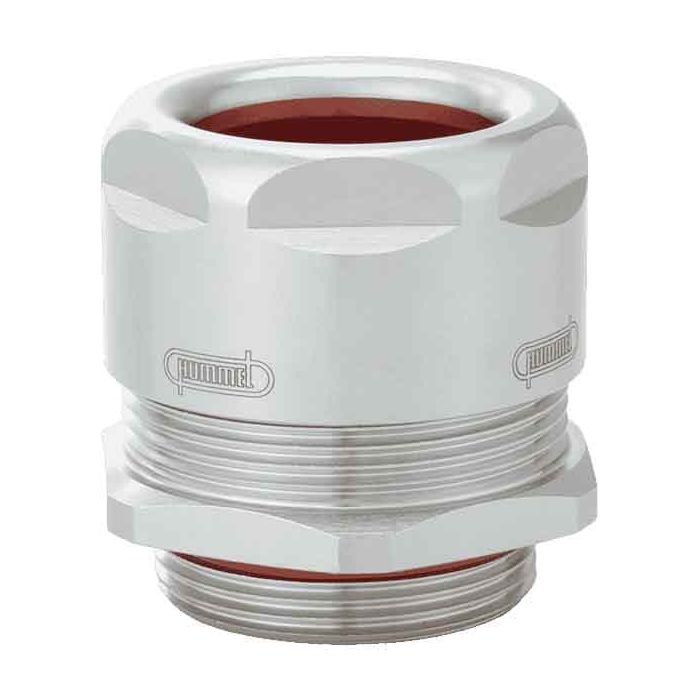

Cable gland made of brass with large temperature range
Cable gland made of brass with large temperature range Protection class - IP 68 – 10 bar. Version - short. Seal - VMQ (silicone)
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1751250051 |
| Weight (kg) | 0.06319 |
| Further information | suitable for absolute low and high temperature applications, integrated possibility for EMV connection, large clamping range through reduction insert, integrated anti-twist protection during cable installation, UL certification in preparation |
| Customs tariff number | 85369010 |
| EAN code | 4033878003688 |
| ETIM 7 | EC000441 |
| Packaging Unit | 25 |
| Height (mm) | 29 |
| Certificates | UL, CE |
| Version | short |
| External thread (AG) | M25 x 1,5 |
| Material seals / O-rings | VMQ (silicone) |
| Cable diameter (mm) | 14.5 – 18 |
| Wrench size SW1 / SW2 (mm) | 27/30 |
| Protection class | IP 68 – 10 bar |
| Material | Nickel-plated brass |
| Seal | VMQ (silicone) |
| Thread length (mm) | 7 |
| Variant | Metric |
| Tightening torque [Nm] | 10 |
| Wrench size 1 (SW1) [mm] | 27 |
| Wrench size (SW) [mm] | 30 |
| Norms | RoHS, EMV |
| Temperature Range | -60°C to +200°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
