1.878.4020.50
1.878.4020.50
Hummel

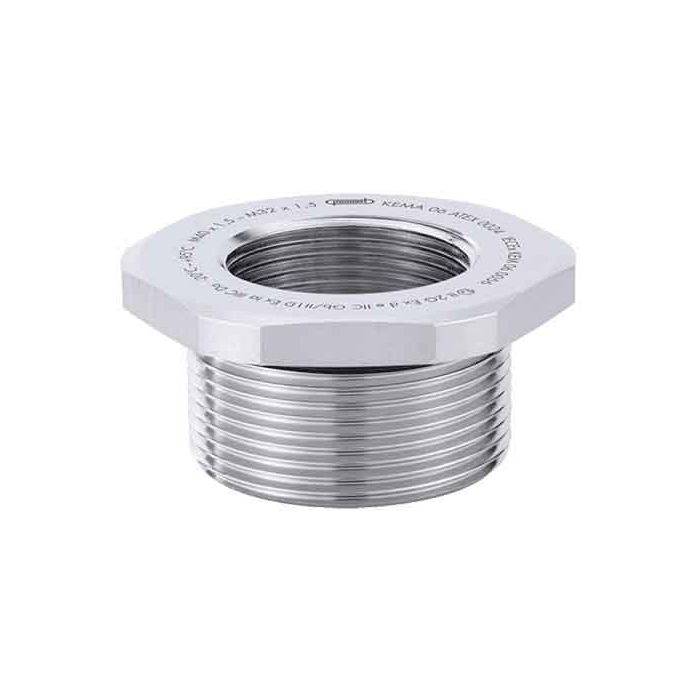

Reduction made of brass for hazardous areas
Reduction made of brass for hazardous areas from Hummel. Metric. Protection class IP 68 – 10 bar, IP 69 K - -20°C to +95°C
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1878402050 |
| Manufacturer | Hummel |
| Weight (kg) | 0.0052 |
| Customs tariff number | 74122000 |
| EAN code | 4033878445273 |
| ETIM 7 | EC000938 |
| Packaging Unit | 5 |
| Height (mm) | 21.0000 |
| Certificates | EAC, DNV-GL, IECEx, ATEX, INMETRO, CE |
| RoHS | RoHS |
| External thread (AG) | M40 x 1.5 |
| Material seals / O-rings | NBR |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Thread length (mm) | 16.0000 |
| Internal thread (IG) | M20 x 1.5 |
| Tightening torque [Nm] | 16.0000 |
| Wrench size 1 (SW1) [mm] | 46.0000 |
| Wrench size (SW) [mm] | 46.0000 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex db eb IIC Gb |
| Temperature Range | -20°C to +95°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
