1.898.2520.50
1.898.2520.50
Hummel

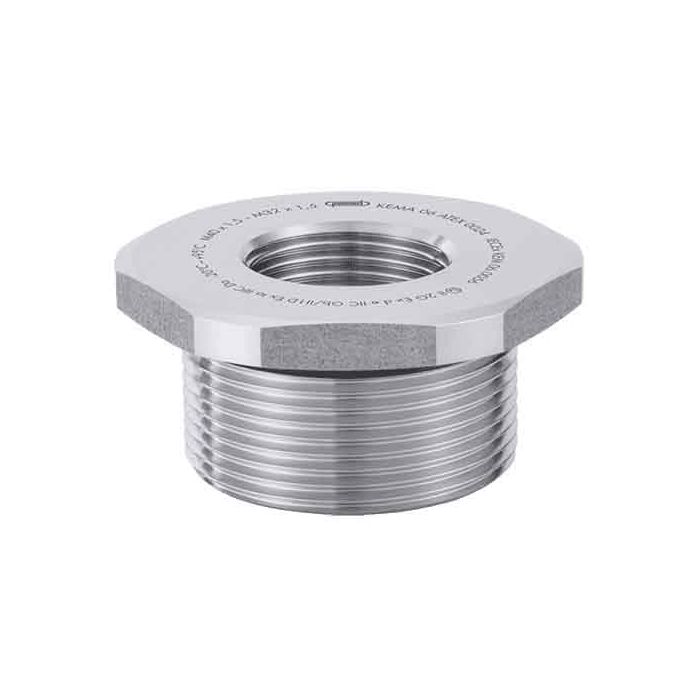

Reduction made of stainless steel for hazardous areas
Reduction made of stainless steel for hazardous areas from Hummel. Metric. Protection class IP 68 – 10 bar, IP 69 K - -20°C to +95°C
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Product Brand Name | 1898252050 |
Manufacturer | Hummel |
Weight (kg) | 0.029 |
Customs tariff number | 73072910 |
EAN code | 4033878445785 |
ETIM 7 | EC000938 |
Packaging Unit | 5 |
Height (mm) | 19.5 |
Certificates | EAC, DNV-GL, IECEx, ATEX, INMETRO, CE |
RoHS | RoHS |
Version | short |
External thread (AG) | M25 x 1.5 |
Material seals / O-rings | NBR |
Protection class | IP 68 – 10 bar, IP 69 K |
Material | INOX 1.4404 |
Thread length (mm) | 16.0000 |
Internal thread (IG) | M20 x 1.5 |
Tightening torque [Nm] | 12.0000 |
Wrench size 1 (SW1) [mm] | 30.0000 |
Wrench size (SW) [mm] | 30.0000 |
Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex db eb IIC Gb |
Temperature Range | -20°C to +95°C |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
