LAPP Cable

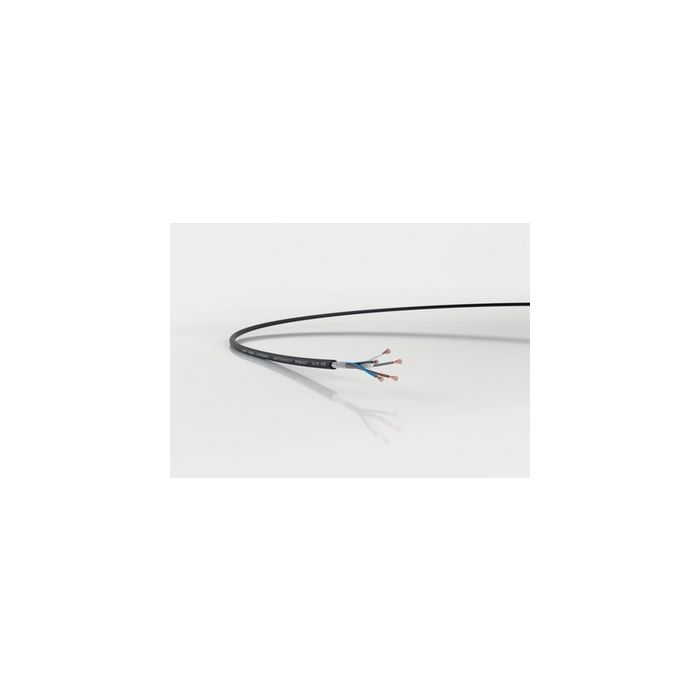

Halogen-free data transmission cable with colour code acc. to DIN 47100 - resistant to a wide range of chemical media
UNITRONIC® ROBUST: Low-frequency data cable, Resistant to biopetroleums/ cleaners/ hot water/ hydraulic fluids, -40°C/+90°C, Outdoor, Food &Beverage, Composting
More Information
| Attribute |
Value |
| Product Brand Name |
UNITRONIC® ROBUST |
| Approvals |
- Based on VDE 0812
- Certified resistance to disinfection and cleaning solutions used in food and beverage industry
|
| Extended Description |
Benefits- Outstanding weather, ozone and UV resistance together with the wide temperature range enable versatile use for indoor and outdoor applications
- Resistant to contact with organic oils and the related emulsions as well as a multitude of plant, animal or synthetic-based greases and waxes
- Good resistance to ammonia compounds and bio-gases
- Good resistance to cold and hot water as well as water-soluble cleaning and cooling agents
- Well-suited to steam cleaning
Applications- Machine tool building, medical technology, laundries, car washing equipment, chemical industry, composting plants, sewage works
- Food and beverage industry, especially for production and processing equipment of milk and meat products
- For data processing, measurement and control engineering, safety related systems and as electronics cable
- For indoor and outdoor use
Features- Good chemical resistance to ester-based hydraulic fluids
- Ozone, UV and weather-resistant according to EN 50396 and HD 605 S2
- Halogen-free as per IEC 60754-1, Low corrosivity/ acidity of combustion gases per IEC 60754-2, Low toxicity of comb. gases per EN 50305
- Low smoke density according to IEC 61034-2
Product make up- Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
- Core insulation made of special halogen-free compound
- Outer sheath made of special TPE
- Outer sheath colour: Black
|
| Food and beverage |
Yes |
| Outdoor Use |
Yes |
| Chemical resistant |
Yes |
| Halogen free |
Yes |
| Cold resistant |
Yes |
| UV Resistant |
Yes |
| Number of conductors |
12 |
| mm2 per conductor |
0.34 |
| Outer Diameter (mm) |
7.8 |
| Copper index kg per km |
39.2 |
| Technical Data |
Core identification code- DIN 47100 without colour repetition
Conductor stranding- Stranded, fine-wire 0.34 mm²: 7-wire
Minimum bending radius- Occasional flexing: 10 x outer diameter
- Fixed installation: 4 x outer diameter
Test voltageInductivityTemperature range- Occasional flexing: -40°C to +90°C
- Fixed installation: -50°C to +90°C
|
| Weight kg per km |
107.0000 |
