110-70N
110-70N
BOLAB Systems
4-Quadrant Voltage Amplifier, 1,000 W, +70 V
DC to 200 kHz, 40 A, Amplifier

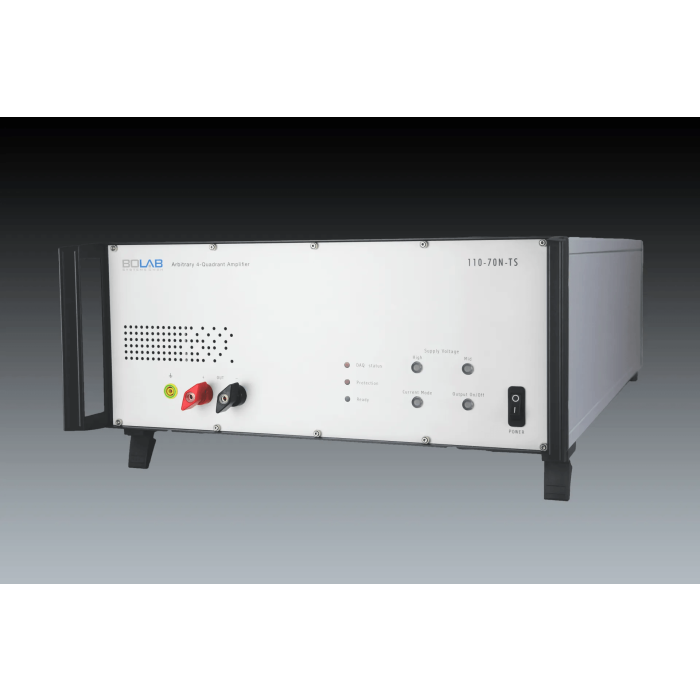

The BOLAB 110-70N is a linear precision 4-quadrant power amplifier for fast voltage and current signals, both positive and negative (bipolar). Output power: 1,000 W. Voltage range: +70 V to -16 V. Max current: 40 A. Bandwidth: DC to 200 kHz (full power), DC to 1 MHz (small signal -3 dB). Memory: 1,000,000 data points for arbitrary waveforms. Features include modular design with master-slave capability, WaveMaster software, monitor outputs, and USB interface.
Key Features:
- DC – 200 kHz bandwidth DC
- MHz (small signal -3 dB)
- Output voltage ±70 Vpk
- Rise / fall time 100 V/µs
- USB interface standard, LAN optional
- Analog control input 0 … ±10 V for control of voltage and current
- Monitor outputs for measured voltage and current values (not all models)
- Modularly extensible via master-slave mode
- Parallel and Series Connections for two or more units
For datasheet specifications, please contact a member of our test team.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 4 U |
| Amplifier Type | Solid State Voltage Amplifiers |
| Current | 40 A |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
