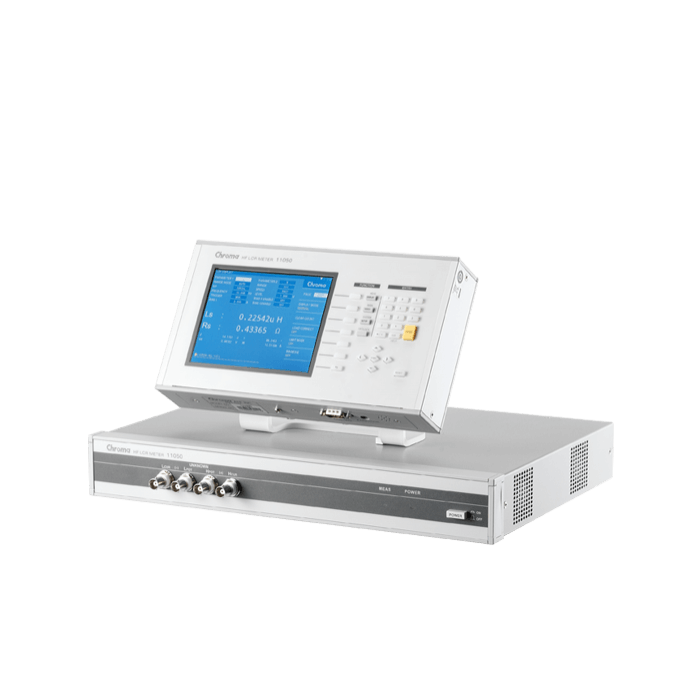

11050

Accurately Measure and Evaluate Passive Components at High Speeds with Precision

The Chroma 11050 has measurement capabilities that cover primary and secondary parameters testing for testing the inductance, capacitance, resistance, quality factor and loss factor of passive components.

The Chroma 11050 HF LCR Meter has a broad testing frequency range 75kHz~30MHz/1kHz~10MHz/60Hz~5MHz suitable for analysing component characteristics under different frequencies.

Key Features:

• Provides test frequencies of 75kHz~30MHz/1kHz~10
• Its 0.1% basic measurement accuracy provides stable and highly reliable results
• A fast 7ms measurement speed effectively increases productivity when working in an automated environment
• Multiple remote interface options
• Handler and RS-232C remote interfaces come standard for software or hardware control of test conditions, measurement triggers, judge test results, and collecting measured data
• The standard USB port saves device settings and controls the output of an external DC bias current source
• Optional GPIB and Ethernet remote interfaces are available as well for software control
