11126001205
11126001205
Harting
Han-Yellock 60 HSM 2xM25

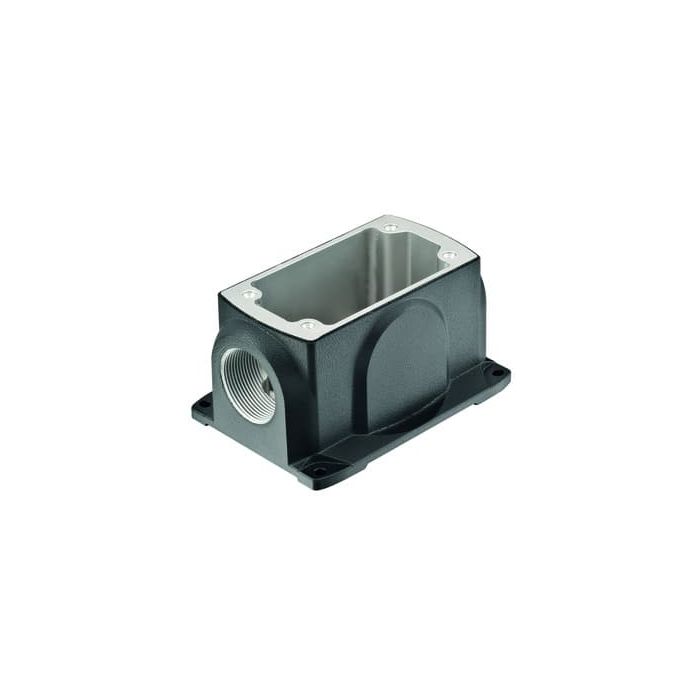

Surface mounted housing, Size: Han-Yellock® 60, Screw locking, Side entry, 2x M25, Material (hood/housing): Zinc die-cast, Powder-coated, RAL 7021 (black grey), Material (seal): NBR, Degree of protection: IP65, IP67
In stock
| Attribute | Value |
|---|---|
| Product Segment | 460 Han-Yellock® Hoods/Housings |
| Product Family | Han-Yellock® Housing |
| Product Brand Name | 11 12 600 1205 |
| Approvals | CE |
| Manufacturer | HARTING |
| Colour | anthracite |
| Customs tariff number | 85389099 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | CN |
| Manufacturer's Brand | Han-Yellock® |
| Size | Han-Yellock® 60 |
| Standards | EN 60664-1 |
| Material housing | Zink |
| Degree of protection - IP (mounted) | IP65 |
| Design of housing | Socket housing |
| Housing colour | anthracite |
| Interlock type | Screw |
| Shackle position | Without |
| Size of connection thread | M25 |
| Cable entry direction | lateral |
| Number of cable inlets | 2 |
| Cable gland mounting method | metric |
| Housing surface finish | powder-coated |
| Housing coating | powder-coated |
| Seal | Yes |
| Fire resistance class | V0 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
