Harting

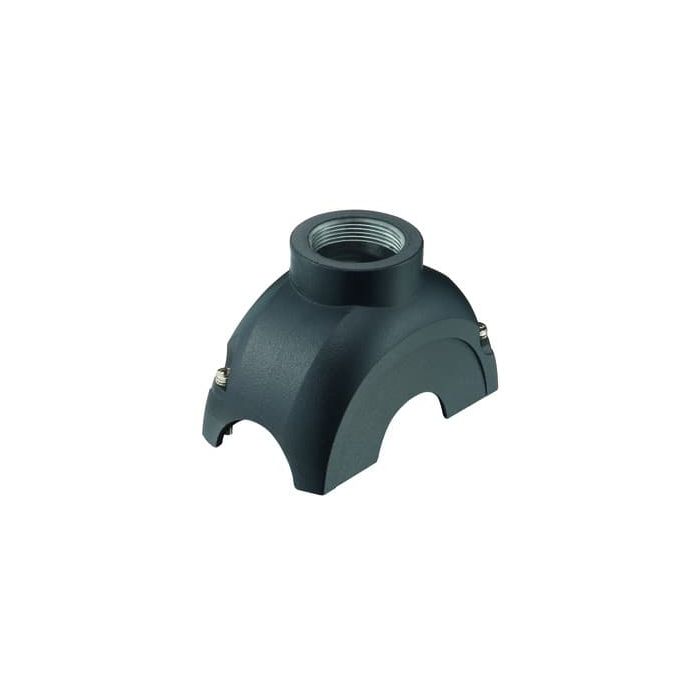

Han-Yellock shell top entry M25
Shell, Size: Han-Yellock® 60, Push button, Top entry, 1x M25, Material (hood/housing): Aluminium die-cast, Powder-coated, RAL 7021 (black grey), Degree of protection: IP65, IP67
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 460 Han-Yellock® Hoods/Housings |
| Product Family | Han-Yellock® Hoods |
| Product Brand Name | 11 12 600 1401 |
| Approvals | CE |
| Manufacturer | HARTING |
| Colour | anthracite |
| Customs tariff number | 85389099 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han-Yellock® |
| Size | Han-Yellock® 60 |
| Standards | EN 60664-1 |
| Material housing | aluminium die-cast |
| Degree of protection - IP (mounted) | IP65 |
| Design of housing | Sleeve housing, multipartite, cover |
| Housing colour | anthracite |
| Interlock type | Push button |
| Shackle position | Without |
| Size of connection thread | M25 |
| Cable entry direction | vertical |
| Number of cable inlets | 1.0000 |
| Cable gland mounting method | metric |
| Housing surface finish | powder-coated |
| Housing coating | powder-coated |
| Fire resistance class | V0 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
