11200

Digital Leakage Current Meter for Capacitor Leakage Current and Insulation Resistance

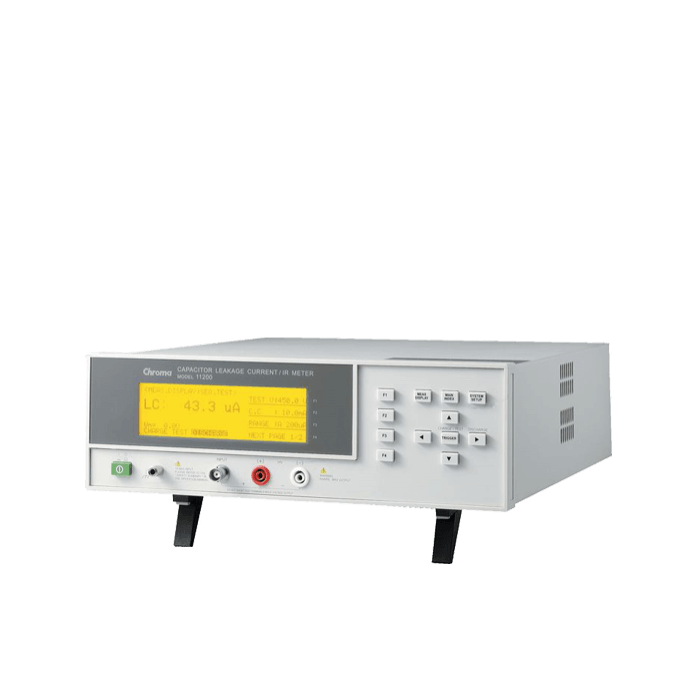

The Chroma 11200 Capacitor Leakage Current/IR Meter is Chroma's newest digital leakage current meter. It provides DC 1~650V, 0.5 ~ 500 mA (150 mA for V > 100 V) or DC1~800V, 0.5~500mA (50mA for V>100V) DC power source with voltage meter and nano-ampere meter.

Key Features:

• Capacitor leakage current test function
• Insulation resistance (IR) test function
• Constant current DC power source with discharge function
• Forward voltage function for diode, LED, Zener diode and varistor
• Surge voltage test function for electrolytic capacitor (JIS C5101/5102/5140/5141)
• Option contact check function to improve test reliability Aluminium-foil withstand voltage and rise- time test function (for EIAJ RC-2364A)
• Precision low constant current charge capability (0.5mA ±0.05mA, meet EIAJ RC-2364A requirement for withstand voltage testing of lower WV aluminium-foil)
• Large charge current (500mA) capability to fasten charge speed
• Digital timer inside
• Comparator and pass/fail alarming beeper function
• Standard RS-232 interface
• Optional GPIB & handler interface

Mainly used for electrolytic capacitor leakage current testing, and aluminium-foil withstand voltage testing (EIAJ RC-2364A).

And also can be used for active voltage checking or leakage current testing of absorber, Zener diode, neon lamp, etc.

Standard RS-232 interface, optional GPIB & Handler interface, high speed and stable measurement capabilities enable the Chroma 11200 can be used for both component evaluation on the production line and fundamental leakage current or IR testing for bench-top applications.
