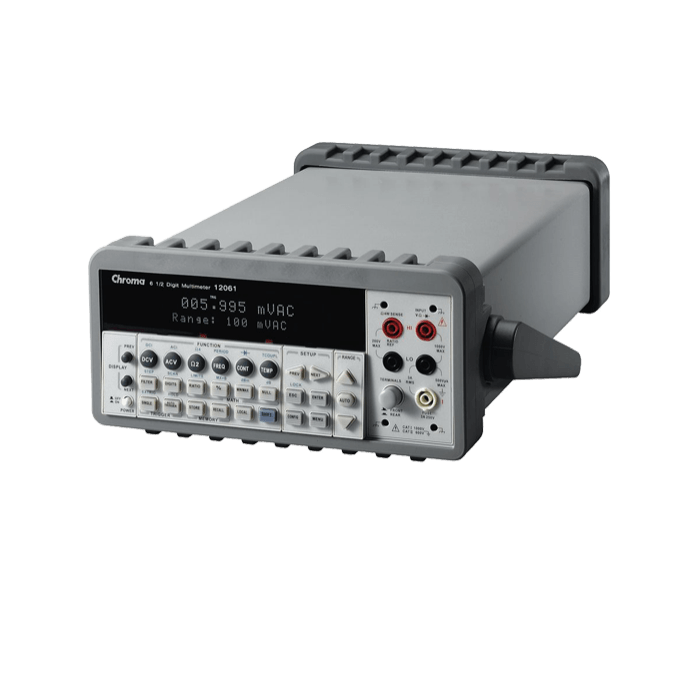

12061

Solution for General Instrument Measurement. 6½ Digital Multimeter is the most frequent used measurement instrument in Electronic industry. Chroma 12061 provides a combination of speed, accuracy and high performance measurement functions that can be used either solely or with system to meet your requirements swiftly.

Chroma 12061 offers the resolution and specification of the same class in the industry plus enhanced speed and accuracy it turns into the best solution for various kind of basic measurements. A brand new design was made for the operating interface of Chroma 12061. The commonly used functions can be selected with a single button pressed that increases the panel accessibility greatly.

Key Features

• 6½ digits resolution
• 11 types of measurement characteristics
  • DC voltage/current (1000V/3A max)
  • AC voltage/current (750V/3A max)
  • Resistance 2 or 4-wire ohms measurement
  • Period & frequency
  • Diode & continuity
  • Temperature (RTD)
• Various math functions
  • NULL
  • Max/Min/Avg
  • High/Low limit
  • Percentage/Ratio/MX+B
  • dB/dBm
• DC voltage accuracy: 0.0015%
• AC voltage accuracy: 0.04%
• Optional Multi-point Scanner Card (10/20ch)
• Measurement and data transmission up to 2000 readings/sec (4½)
• Up to 2000 readings memory storage
• Standard SCPI control
• Standard USB & GPIB interface, support USBTMC
• Software control support
• Chroma 12061 software
• LabView® Driver
