14010313102334
14010313102334
Harting

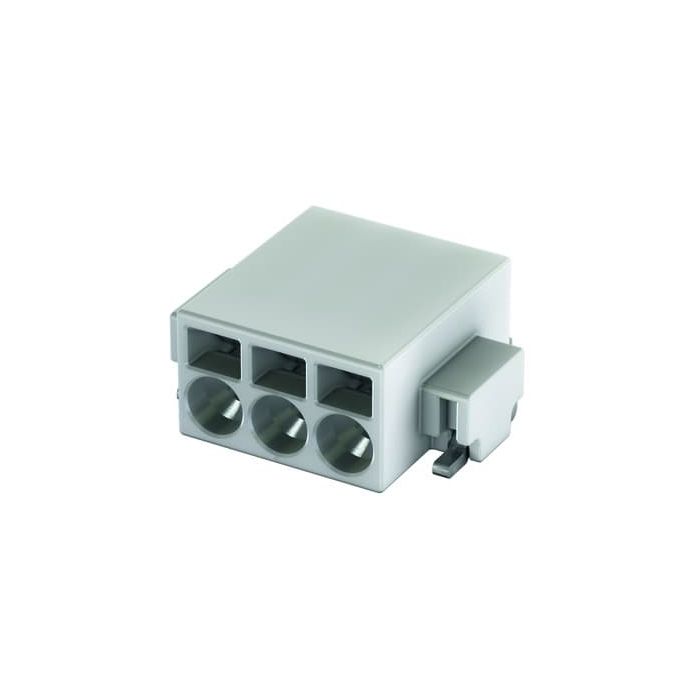

har-flexicon 2,54TSPH-3 T24 SAMPLE WH WP
Connectors, PCB terminal block, Horizontal, With guiding pin, Push-in-spring-cage termination, Rated current:6 A, Contacts: 3, Copper alloy, Tin plated, Liquid crystal polymer (LCP), White
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | har-flexicon |
| Product Family | har-flexicon |
| Product Brand Name | 14 01 031 3102 334 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | CN |
| Type of packaging | Bulk packaging |
| Number of poles | 3 |
| Material contact surface | Tin |
| Rated voltage (V) | 160 |
| Material of insulation | Liquid crystal polymer |
| Coating plug contact area | Tin (Sn) |
| Number of rows | 1 |
| Type of PCB contacting | Push-in-spring-cage termination |
| Grid dimensions 2 (mm) | 2.54 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 6 |
| Temperature Range | -40 to 125 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
