14020425402000
14020425402000
Harting

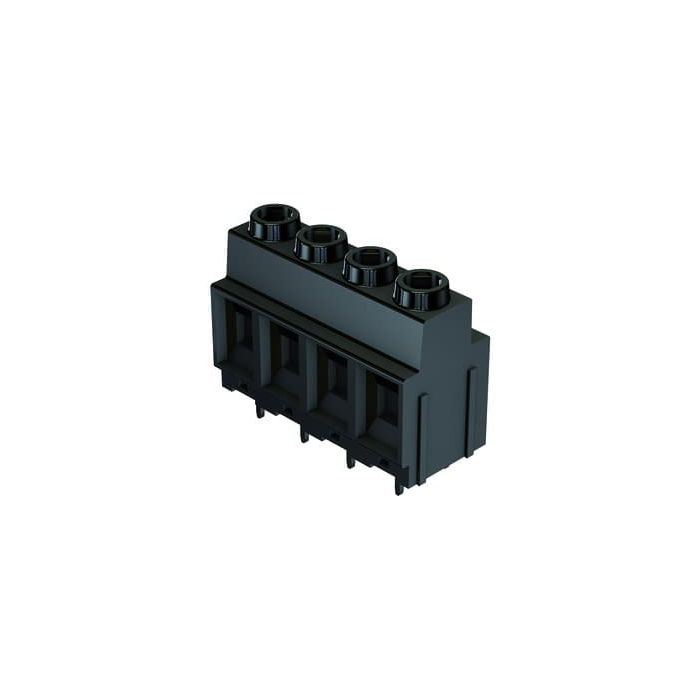

har-flexicon 10,16 TTSH-4 BK
Connectors, PCB terminal block, Horizontal, Screw termination, Rated current:60 A, Contacts: 4, Copper alloy, Tin plated, Polyamide (PA), Polyphthalamide (PPA), Black
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | har-flexicon |
| Product Family | har-flexicon |
| Product Brand Name | 14 02 042 5402 000 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 40.0000 |
| Quantity Interval | 40.0000 |
| Country of origin | IT |
| Type of packaging | Bulk packaging |
| Number of poles | 4.0000 |
| Material contact surface | Tin |
| Rated voltage (V) | 1000.0000 |
| Material of insulation | Polyamide |
| Coating plug contact area | Tin (Sn) |
| Number of rows | 1.0000 |
| Type of PCB contacting | Screw termination |
| Grid dimensions 2 (mm) | 10.16 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 60.0000 |
| Temperature Range | -40 to 110 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
