Harting

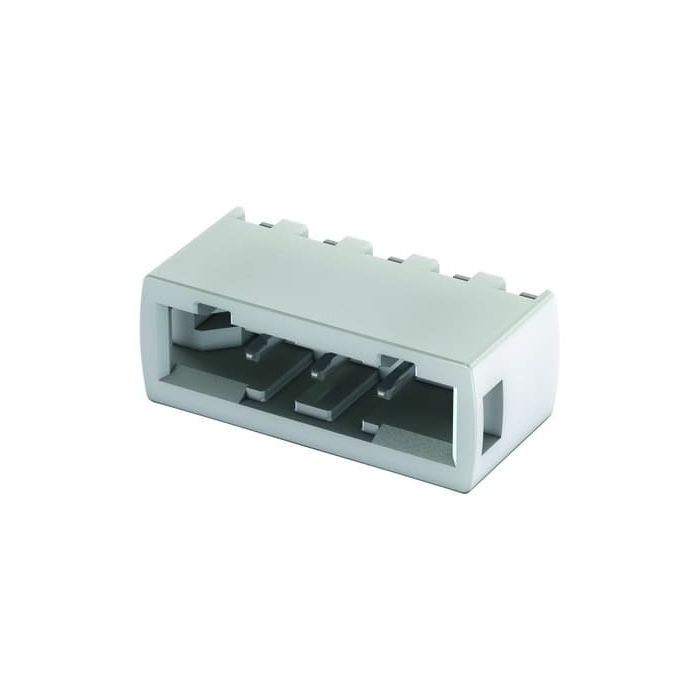

har-flexicon 2,54 MSH-3 T24 SAMPLE WH WP

Connectors, Header, Horizontal, With guiding pin, Rated current:6 A, Contacts: 3, Copper alloy, Tin plated, Liquid crystal polymer (LCP), White
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Segment har-flexicon
Product Family har-flexicon
Product Brand Name 14 11 031 3002 334
Manufacturer HARTING
Customs tariff number 85366990
Quantity Min 1
Quantity Interval 1
Country of origin CN
Type of packaging Sample
Number of poles 3
Material contact surface Tin
Rated voltage (V) 160
Material of insulation Liquid crystal polymer
Coating plug contact area Tin (Sn)
Number of rows 1
Grid dimensions 2 (mm) 2.54
Material contact Other copper alloys
Fire resistance class V0
Current Rating (A) 6
Temperature Range -40 to 125 Deg. C
More Information
Attribute Value
Data Sheet Click here to view
