14110713001333
14110713001333
Harting

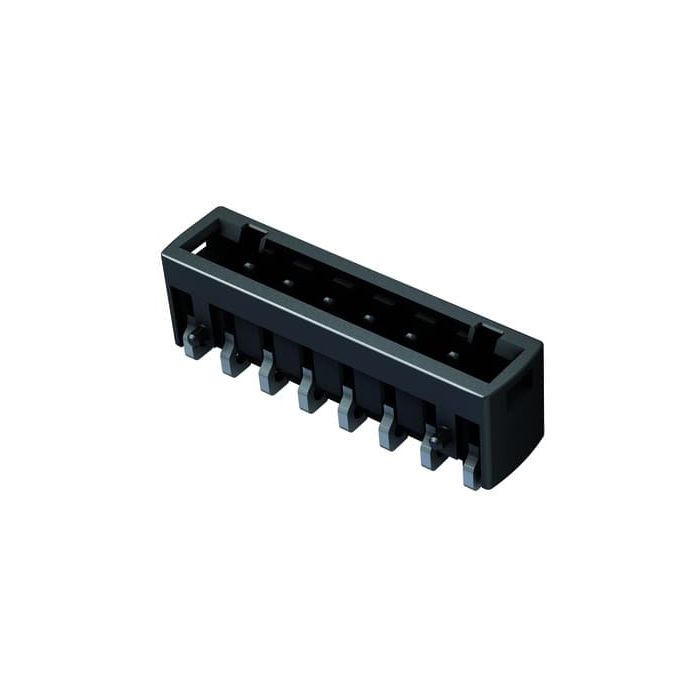

har-flexicon 2,54 MSV-7 SAMPLE BK
Connectors, Header, Vertical, Rated current:6 A, Contacts: 7, Copper alloy, Tin plated, Liquid crystal polymer (LCP), Black
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | har-flexicon |
| Product Family | har-flexicon |
| Product Brand Name | 14 11 071 3001 333 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | CN |
| Type of packaging | Sample |
| Number of poles | 7.0000 |
| Material contact surface | Tin |
| Rated voltage (V) | 160.0000 |
| Material of insulation | Liquid crystal polymer |
| Coating plug contact area | Tin (Sn) |
| Number of rows | 1.0000 |
| Grid dimensions 2 (mm) | 2.54 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 6.0000 |
| Temperature Range | -40 to 125 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
