14311017106000
14311017106000
Harting

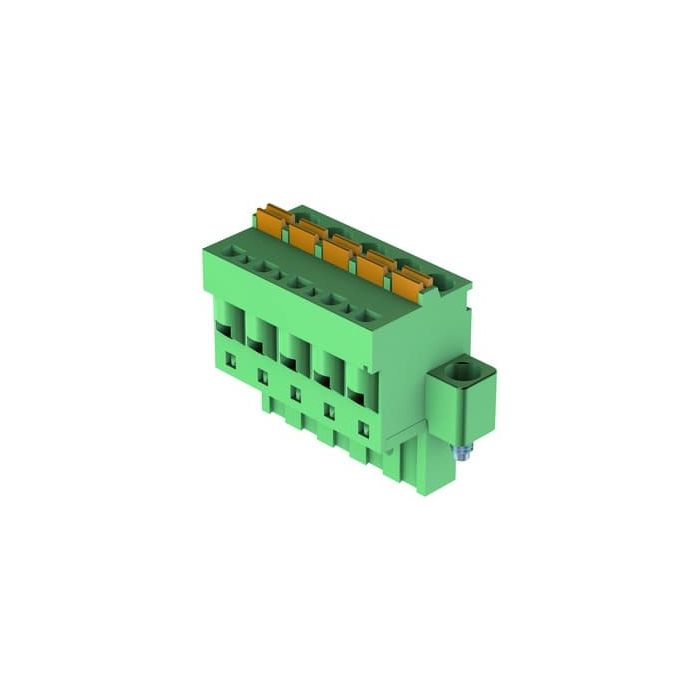

har-flexicon 5,08 FPH-10 GN SL
Connectors, Connector, Horizontal, Push-in-spring-cage termination, Rated current:12 A, Contacts: 10, Copper alloy, Tin plated, Coding: Please order coding pins separately., PCB fixing: With screw flange, Polyamide (PA), Polyphthalamide (PPA), Green
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | har-flexicon |
| Product Family | har-flexicon |
| Product Brand Name | 14 31 101 7106 000 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 100 |
| Quantity Interval | 100 |
| Country of origin | IT |
| Type of packaging | Bulk packaging |
| Number of poles | 10 |
| Material contact surface | Tin |
| Rated voltage (V) | 250 |
| Material of insulation | Polyamide |
| Coating plug contact area | Tin (Sn) |
| Number of rows | 1 |
| Type of PCB contacting | Push-in-spring-cage termination |
| Grid dimensions 2 (mm) | 5.08 |
| Assembly | Screw |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 12 |
| Temperature Range | -40 to 110 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
