150-CT Series
150-CT Series
Bird

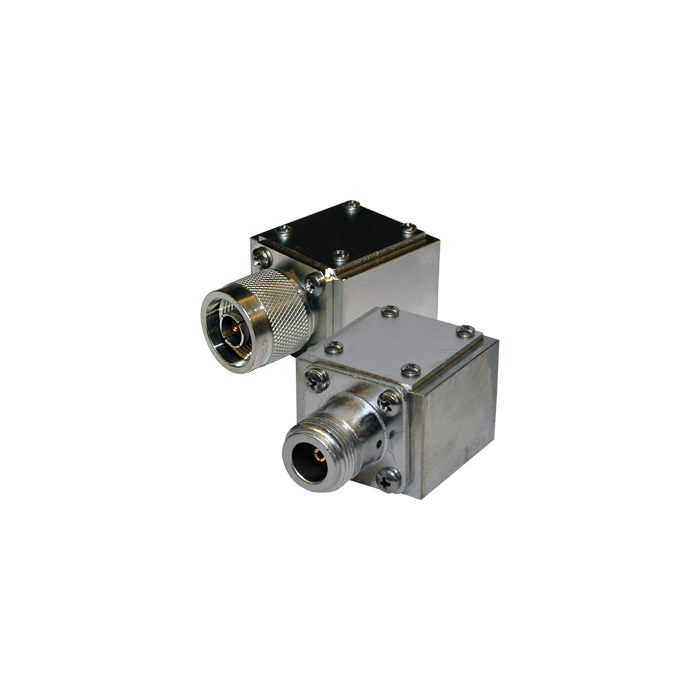

150 Watt, Conduction-Cooled Dry Terminations
150-CT Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
150-CT Series Specifications
- Wide variety of connectors
- Conduction-Cooled
- Rugged Reliability provides years of trouble free use
- Compact size tapped mounting holes for fixed installations
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Silver or Tri-Alloy Plated |
| VSWR and Frequency Range | DC to 1 GHz @ 1.15:1 max., 1 GHz to 3 GHz @ 1.25:1 max |
| Operating Position | Any |
| Cooling Type | Dry (Conduction-Cooled) |
| Base to Connector Center | 0.531" (13.5 mm) |
| Mounting Centers | 0.575" x 0.825", (14.6 x 21 mm) |
| Connectors | BNC, N, TNC, SMA |
| Dimensions | (with N connector) 1.86" x 1.25" x 1.062" (L x W x H), 47.3 x 31.8 x 27 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
