15021004601042
15021004601042
Harting

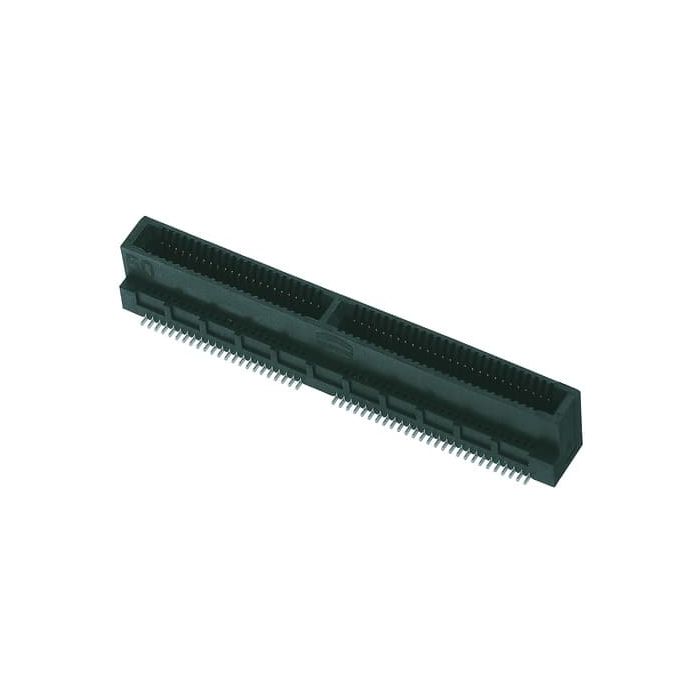

Micro Card Edge 100pin S4 SMT reel
Connectors, Connector, Reflow soldering termination (SMT), Rated current:1.9 A, Contacts: 100, Copper alloy, Au over Pd/Ni, Mating side, Sn/Ni, Termination side, Liquid crystal polymer (LCP), Black
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | Micro Card Edge Connector |
| Product Family | Micro Card Edge Connector |
| Product Brand Name | 15 02 100 4601 042 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 200.0000 |
| Quantity Interval | 200.0000 |
| Country of origin | CN |
| Type of packaging | Castor |
| Number of poles | 100.0000 |
| Material contact surface | Nickel/gold |
| Material of insulation | Liquid crystal polymer |
| Coating plug contact area | Gold (au) |
| Number of rows | 2.0000 |
| Type of PCB contacting | Reflow soldering termination (SMT) |
| Grid dimensions 2 (mm) | 0.8 |
| Suitable for printed circuit board thickness (mm) | 1.6 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 1.9 |
| Temperature Range | -55 to 125 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
