Harting

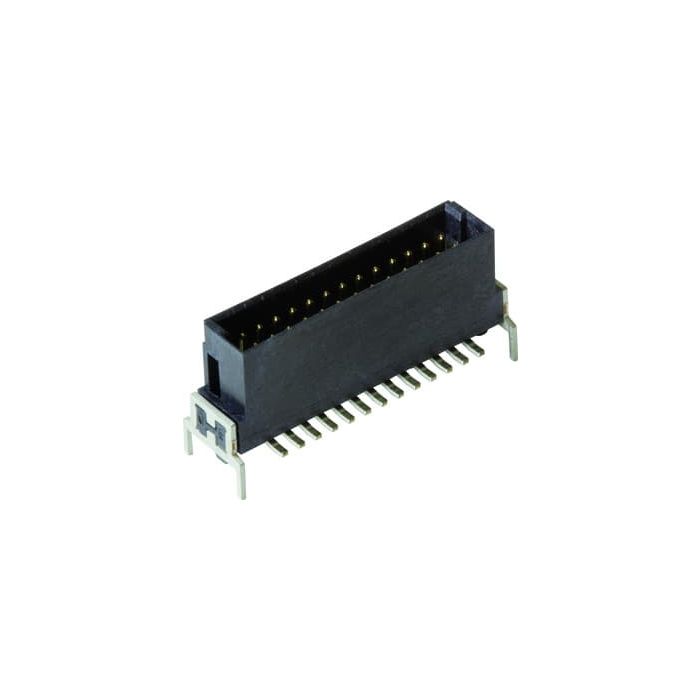

har-flex str m thr 3.25mm 20p PL1
Connectors, Male connector, THR connection, Contacts: 20, Straight, Copper alloy, Au over Pd/Ni, Mating side, Tin plated, Termination side, Performance level: 1, Liquid crystal polymer (LCP)
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | har-flex samples straight male |
| Product Family | har-flex |
| Product Brand Name | 15 12 020 2401 333 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | CN |
| Type of packaging | Sample |
| Number of poles | 20.0000 |
| Material contact surface | Nickel/gold |
| Material of insulation | Liquid crystal polymer |
| Direction mating face | Standard |
| Coating plug contact area | Gold (au) |
| Number of rows | 2.0000 |
| Type of PCB contacting | THR connection |
| Grid dimensions 1 (mm) | 1.27 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Temperature Range | -55 to 125 Deg. C |
