Harting

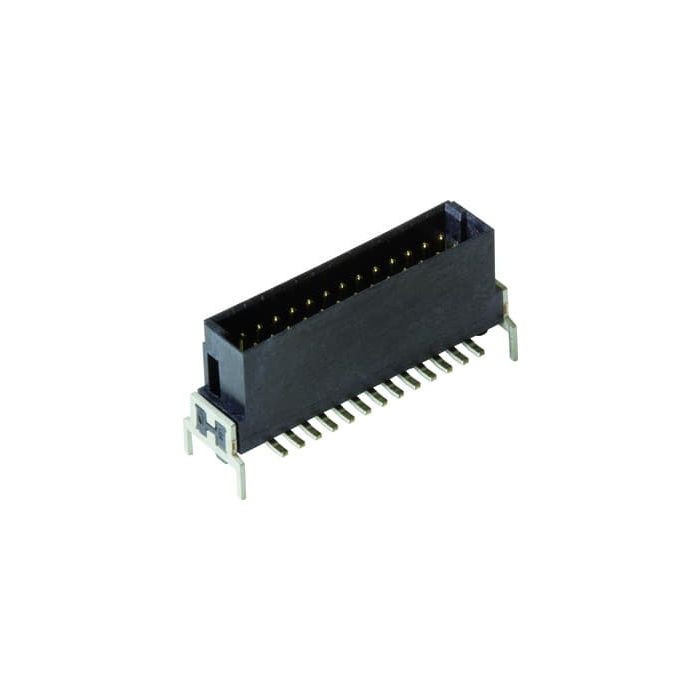

har-flex THR str m 3.25mm 50p PL1 220pcs

Connectors, Male connector, THR connection, Contacts: 50, Straight, Copper alloy, Au over Pd/Ni, Mating side, Tin plated, Termination side, Performance level: 1, Liquid crystal polymer (LCP)
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Segment har-flex straight male
Product Family har-flex
Product Brand Name 15 12 050 2401 000
Manufacturer HARTING
Customs tariff number 85366990
Quantity Min 1
Quantity Interval 1
Country of origin CN
Type of packaging Castor
Number of poles 50
Material contact surface Nickel/gold
Material of insulation Liquid crystal polymer
Direction mating face Standard
Coating plug contact area Gold (au)
Number of rows 2
Type of PCB contacting THR connection
Grid dimensions 1 (mm) 1.27
Material contact Other copper alloys
Fire resistance class V0
Temperature Range -55 to 125 Deg. C
More Information
Attribute Value
Data Sheet Click here to view
