Harting

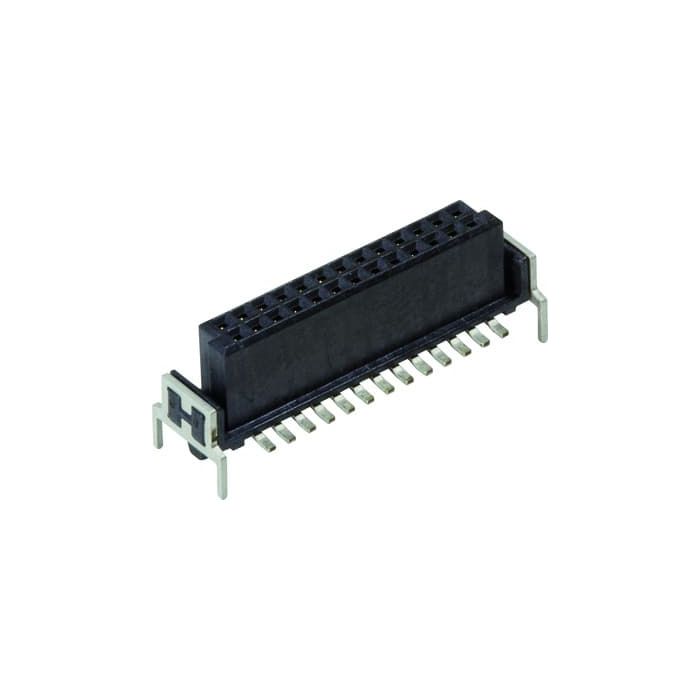

har-flex THR str f 6.25mm 26p PL1

Connectors, Female connector, THR connection, Contacts: 26, Straight, Copper alloy, Au over Pd/Ni, Mating side, Tin plated, Termination side, Performance level: 1, Liquid crystal polymer (LCP)
In stock
£7.24
More Information
Attribute Value
Product Segment har-flex samples straight female
Product Family har-flex
Product Brand Name 15 21 026 2401 333
Manufacturer HARTING
Customs tariff number 85366990
Quantity Min 1
Quantity Interval 1
Country of origin CN
Type of packaging Sample
Number of poles 26
Material contact surface Nickel/gold
Material of insulation Liquid crystal polymer
Direction mating face Standard
Coating plug contact area Gold (au)
Number of rows 2
Type of PCB contacting THR connection
Grid dimensions 1 (mm) 1.27
Material contact Other copper alloys
Fire resistance class V0
Temperature Range -55 to 125 Deg. C
More Information
Attribute Value
Data Sheet Click here to view
