Harting

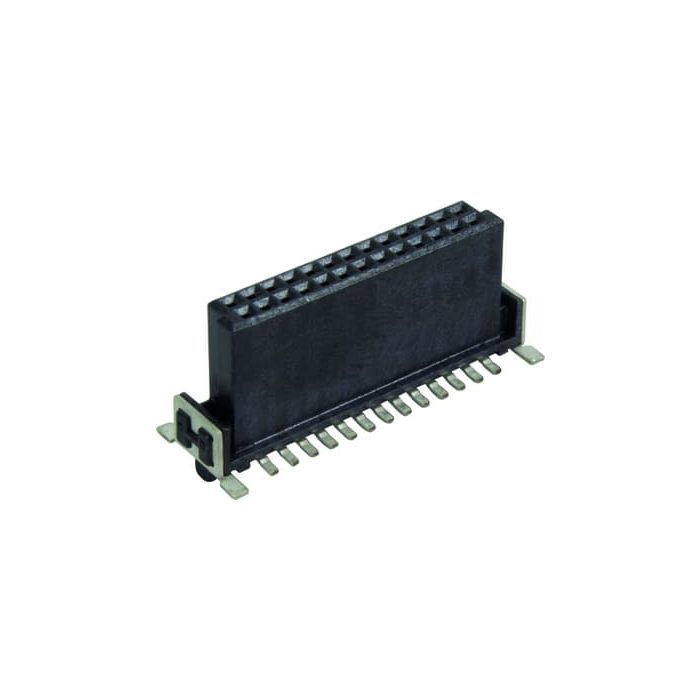

har-flex str f 9.05mm 80p PL2 280pcs

Connectors, Female connector, Reflow soldering termination (SMT), Contacts: 80, Straight, Copper alloy, Au over Pd/Ni, Mating side, Tin plated, Termination side, Performance level: 2, Liquid crystal polymer (LCP)
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Segment har-flex straight female
Product Family har-flex
Product Brand Name 15 22 080 6601 000
Manufacturer HARTING
Customs tariff number 85366990
Quantity Min 1.0000
Quantity Interval 1.0000
Country of origin CN
Type of packaging Castor
Number of poles 80.0000
Material contact surface Nickel/gold
Material of insulation Liquid crystal polymer
Direction mating face Standard
Coating plug contact area Gold (au)
Number of rows 2.0000
Type of PCB contacting Reflow soldering termination (SMT)
Grid dimensions 1 (mm) 1.27
Material contact Other copper alloys
Fire resistance class V0
Temperature Range -55 to 125 Deg. C
More Information
Attribute Value
Data Sheet Click here to view
