LAPP Cable

Outdoor telecommunication cable

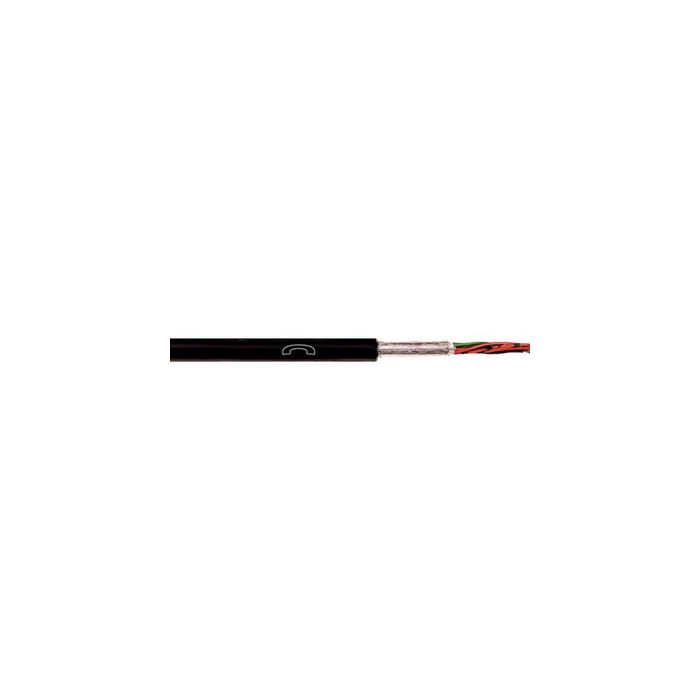

main product photo
A-2YF(L)2Y...ST III BD - Outdoor telecommunication cable VDE 0816, longitudinal and lateral watertightness, use as directly and indirectly buried/ burial cable
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Brand Name A-2YF(L)2Y...ST III BD
Approvals
  • Based on VDE 0816
Extended Description Applications
  • External cables for telecommunication and data processing systems
  • Do not install cables that are meant to be placed in ducts or for direct burial in areas exposed to fire hazards
Features
  • Outer sheath colour: black (RAL 9005)
  • UV-resistant and laterally watertight
  • Filled version (A-2YF(L)2Y...ST III BD) is addionally longitudinal watertight
Product make up
  • Similar to A-2Y(L)2Y, but with petroleum-jelly filling, laminated sheath made of aluminium-coated plastic tape, and black PE outer sheath
Outdoor Use Yes
UV Resistant Yes
Interference rejecting Yes
Number of conductors 2X2
mm2 per conductor 0.6
Outer Diameter (mm) 8.3
Copper index kg per km 11.0000
Conductor resistance HTML
  • 0.6 mm: 130 ohm/km
  • 0.8 mm: 73.2 ohm/km
Technical Data Core identification code
  • According to VDE 0816
Conductor stranding
  • 0.6 mm: 0.28 mm²
  • 0.8 mm: 0.50 mm²
Minimum bending radius
  • 10 x outer diameter
Test voltage
  • Core/core: 500 V
  • Core/screen: 2000 V
Conductor resistance
  • 0.6 mm: 130 ohm/km
  • 0.8 mm: 73.2 ohm/km
Temperature range
  • During installation: -20 °C to +50 °C
  • After installation: ≤ +70 °C
Weight kg per km 67.0000
More Information
Attribute Value
Data Sheet Click here to view
