Indoor telephone cables transmit analogue or digital signals
Aluminium-laminated plastic foil static screen with tin-plated drain wire minimises the interference of high frequency, electromagnetic fields
Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
Applications
Connection cable for use in electronics and in measurement, control and signal applications
In news and communication applications, the following connections can be installed: telephone, telefax, telex, standard modems for postal services; burglar and fire alarm systems (cf. fire alarm cables); communication and paging systems; access control, time and data control systems
Can be used in dry and wet interiors for fixed installation on and under plaster
Features
The 2-paired versions = star quad cable design
Flame-retardant according IEC 60332-1-2

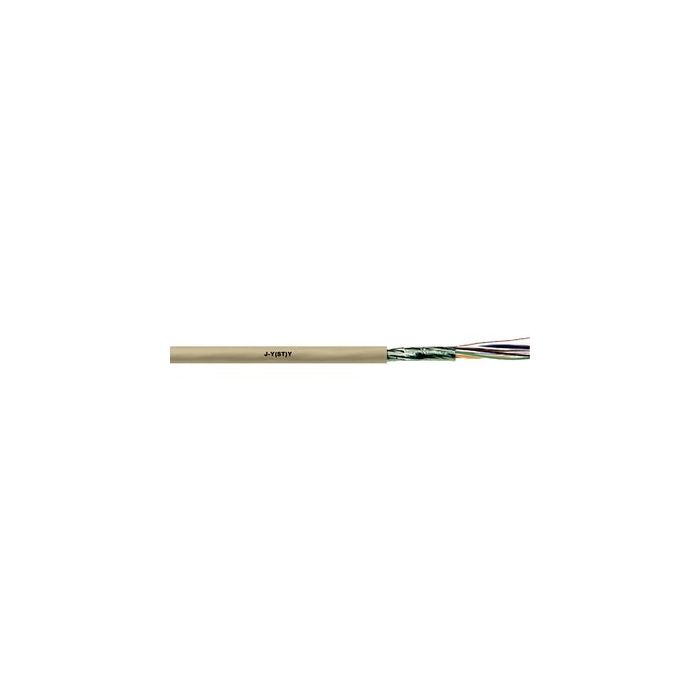

Product make up
Solid bare copper conductor
Core insulation made of PVC
pairs twisted together
foil wrapping over cable core
static screen made of aluminium-laminated plastic film with copper drain wire
Outer sheath made of PVC
Outer sheath colour: grey (similar to pebble grey/ RAL 7032)
