16041705104000
16041705104000
Harting

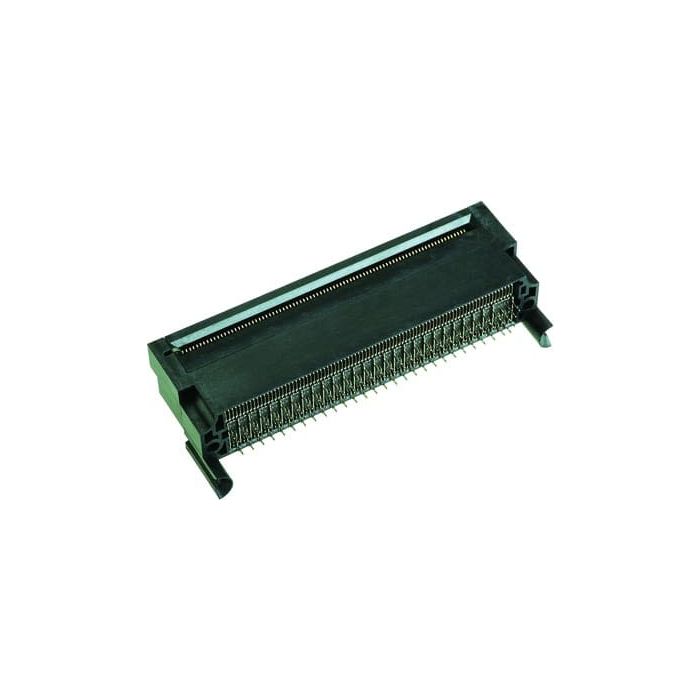

ATCA AdvancedMC B+ peg con:card+
Connectors, Connector, With peg, With GuideSpring, Press-in termination, Rated current:2.2 A, Contacts: 170, Copper alloy, Au over Pd/Ni, Liquid crystal polymer (LCP), Black
Contact our expert team
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
Price
£76.49
| Attribute | Value |
|---|---|
| Product Segment | TCA |
| Product Family | TCA |
| Product Brand Name | 16 04 170 5104 000 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 10 |
| Quantity Interval | 10 |
| Country of origin | DE |
| Type of packaging | Cardboard |
| Material contact surface | Nickel/gold |
| Number of poles | 170 |
| Rated voltage (V) | 3 |
| Material of insulation | Liquid crystal polymer |
| Coating plug contact area | Gold (au) |
| Type of PCB contacting | Press-in |
| Grid dimensions 2 (mm) | 0.75 |
| Pin length (mm) | 2 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 2.2 |
| Temperature Range | -55 to 125 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
