16111705205000
16111705205000
Harting

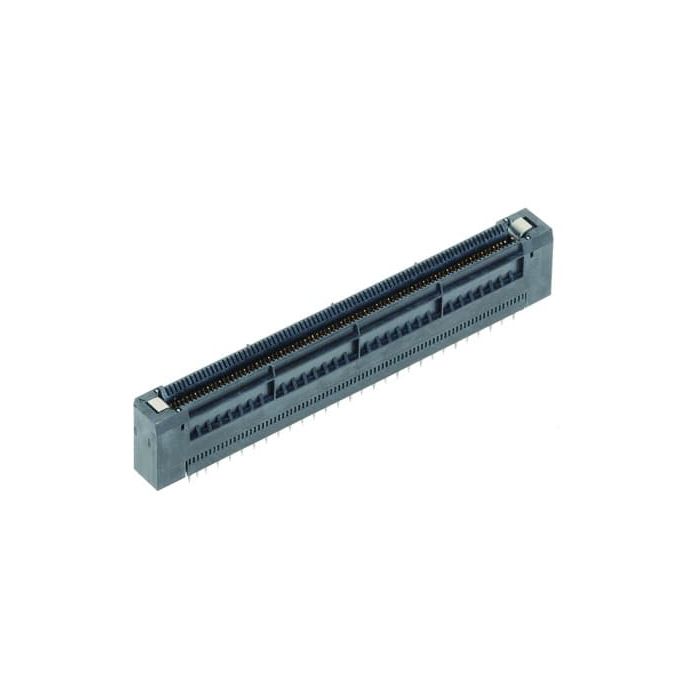

mTCA AdvancedMC con:card+ prot.shield
Connectors, Connector, With GuideSpring, With protection shield, Press-in termination, Rated current:2.3 A, Contacts: 170, Copper alloy, Au over Pd/Ni, Liquid crystal polymer (LCP), Black
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | TCA |
| Product Family | TCA |
| Product Brand Name | 16 11 170 5205 000 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 20.0000 |
| Quantity Interval | 20.0000 |
| Country of origin | CN |
| Type of packaging | Cardboard |
| Number of poles | 170.0000 |
| Material contact surface | Nickel/gold |
| Rated voltage (V) | 3.0000 |
| Material of insulation | Liquid crystal polymer |
| Coating plug contact area | Gold (au) |
| Type of PCB contacting | Press-in |
| Grid dimensions 2 (mm) | 0.75 |
| Pin length (mm) | 2.1 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 2.3 |
| Temperature Range | -55 to 105 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
