16330961201000
16330961201000
Harting

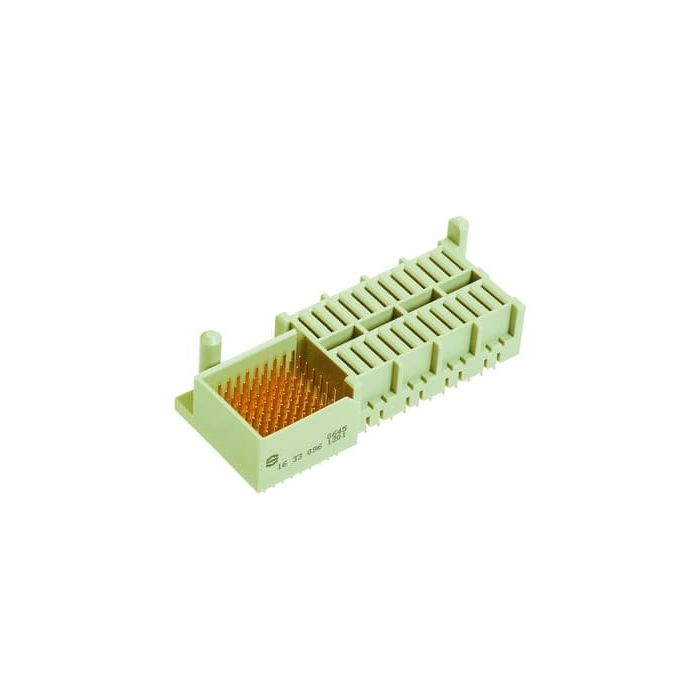

mTCA Power Backplane Connector
Connectors, Connector, Backplane version, Press-in termination, Rated current:9.3 A, Contacts: 72, + 24 power contacts, Copper alloy, Selectively gold plated, Power contacts, Selectively Pd/Ni plated, Signal contacts, Thermoplastic resin (PBT), Beige
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | TCA |
| Product Family | TCA |
| Product Brand Name | 16 33 096 1201 000 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 18.0000 |
| Quantity Interval | 18.0000 |
| Country of origin | CZ |
| Type of packaging | Tray packaging |
| Number of poles | 72.0000 |
| Material contact surface | Gold |
| Material of insulation | Thermoplast |
| Coating plug contact area | Gold (au) |
| Type of PCB contacting | Press-in |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 9.3 |
| Temperature Range | -55 to 105 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
