16340961101000
16340961101000
Harting

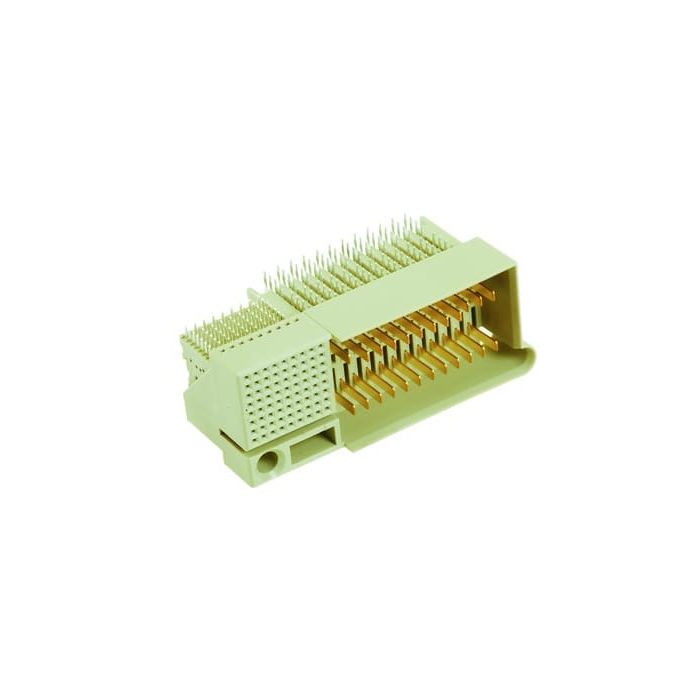

mTCA Power Module Connector
Connectors, Connector, Module version, Press-in termination, Rated current:9.3 A, Contacts: 72, + 24 power contacts, Copper alloy, Selectively gold plated, Power contacts, Selectively Pd/Ni plated, Signal contacts, Thermoplastic resin (PBT), Beige
Contact our expert team
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
Price
£41.14
| Attribute | Value |
|---|---|
| Product Segment | TCA |
| Product Family | TCA |
| Product Brand Name | 16 34 096 1101 000 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 15 |
| Quantity Interval | 15 |
| Country of origin | CZ |
| Type of packaging | Tray packaging |
| Material contact surface | Gold |
| Number of poles | 72 |
| Material of insulation | Thermoplast |
| Coating plug contact area | Gold (au) |
| Type of PCB contacting | Press-in |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 9.3 |
| Temperature Range | -55 to 105 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
