17211102101
17211102101
Harting

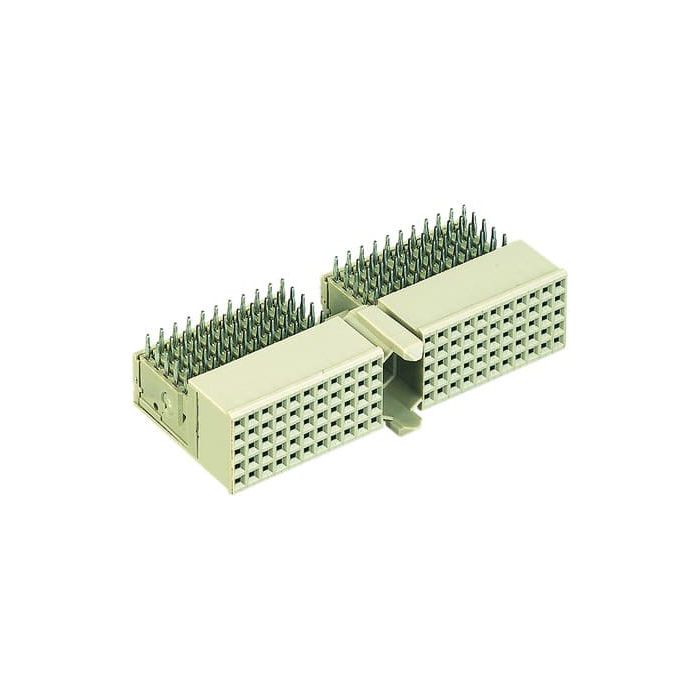

har-bus HM Federl. Typ A, AFS 2, Tube
Connectors, Female connector, Press-in termination, Rated current:1 A, Contacts: 110, Angled, Copper alloy, Au over Ni, Mating side, Nickel plated, Termination side, Performance level: 2, Thermoplastic resin, glass-fibre filled, Beige
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | har-bus HM female |
| Product Family | har-bus HM |
| Product Brand Name | 17 21 110 2101 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 10 |
| Quantity Interval | 10 |
| Country of origin | DE |
| Type of packaging | plastic box |
| Number of poles | 110 |
| Material contact surface | Nickel/gold |
| Material of insulation | Thermoplast |
| Direction mating face | turned |
| Coating plug contact area | Gold (au) |
| Number of rows | 7 |
| Type of PCB contacting | Press-in |
| Grid dimensions 1 (mm) | 2 |
| Grid dimensions 2 (mm) | 2 |
| Suitable for printed circuit board thickness (mm) | 1.4 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 1 |
| Temperature Range | -55 to 125 Deg. C |
